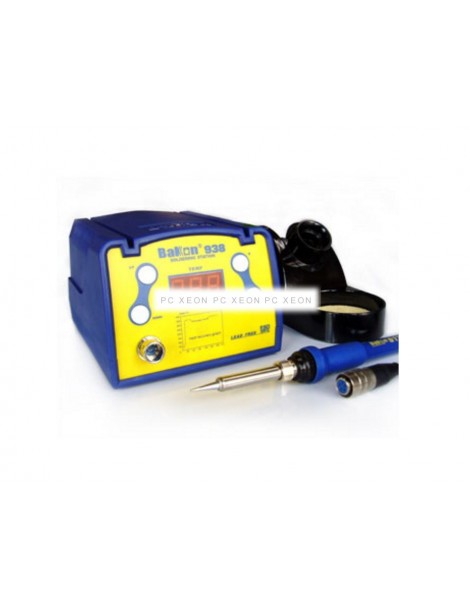

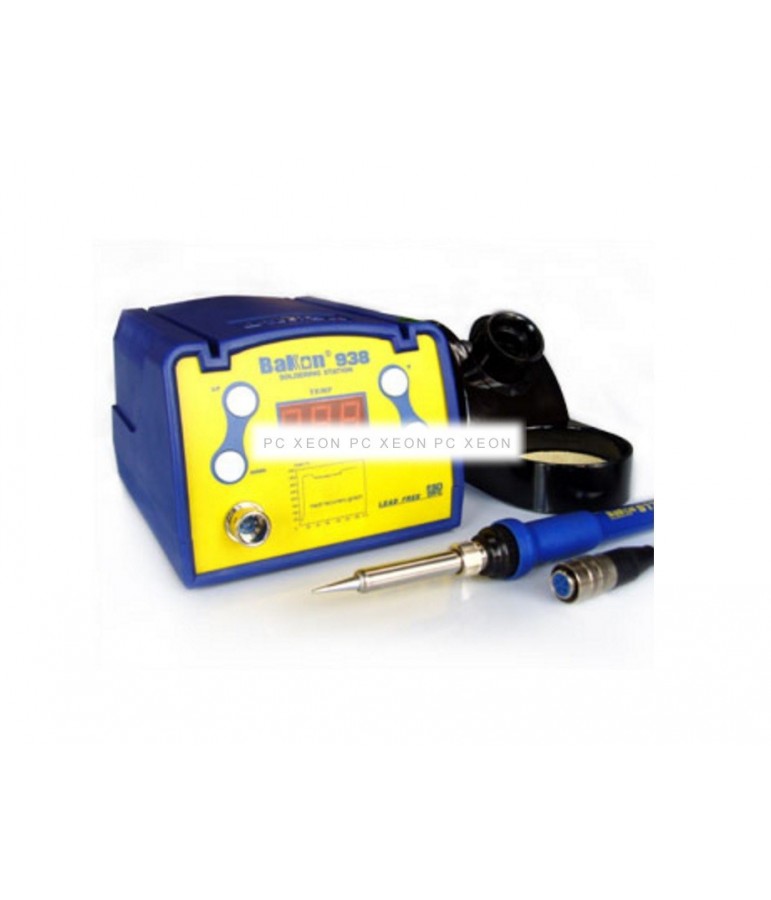

SPECIFICATIONS:

- Temperature range: 180o-450oC.

- Heat element: Ceramic core.

- Temperature stability: +/- 2oC.

- Code block function.

- Hibernation function waiting.

- Dimensions: 125x95x145 mm.

-Name BK 938

- Power supply 220V 50Hz AC

-Power Max 90W (70W consumption)

- AC output voltage 28V

- Weight 1.5Kg (Except pencil)

- Resistance to GND c/o≤2Ω(in factory)

- GND voltage ≤2mV (in factory)

- Element Heater Ceramic Nucleus Imported

- Cable length 1.5m

- Temperature stability ±2°C (normal c) to 25°C 45%H

TEST CONDITIONS

PCB: Copper Plate

Welding point: 1.6 X ≈5mm

Period: welding every 3 seconds

Tip type: B
