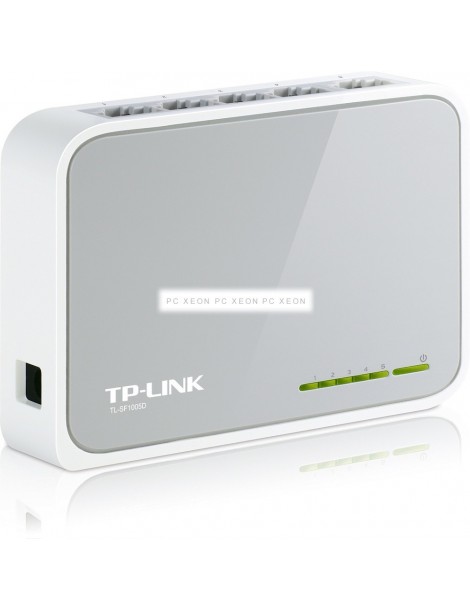

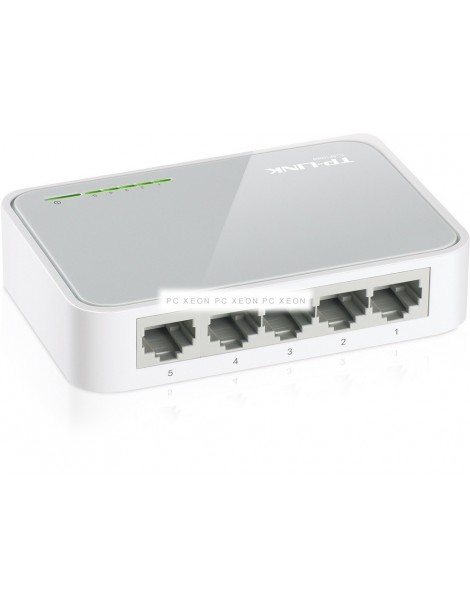

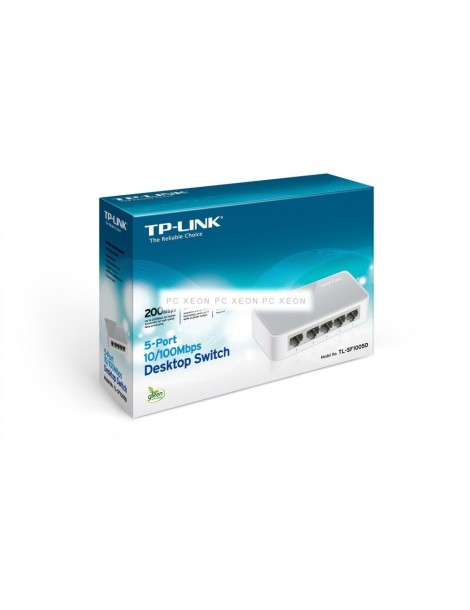

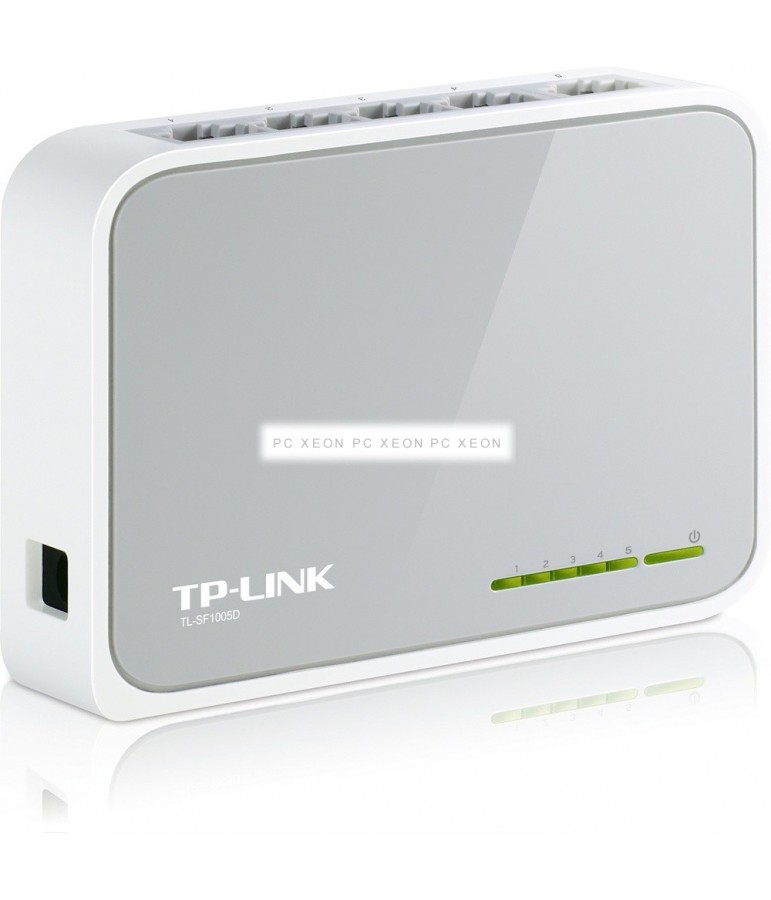

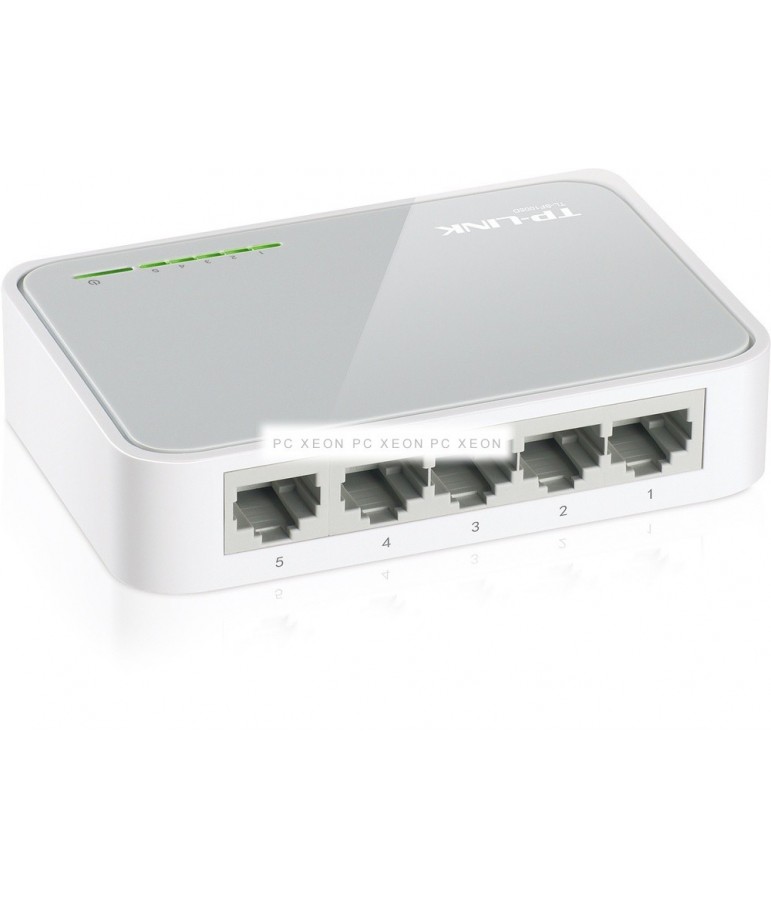

Surface switch with 5 ports to 10/100 Mbps TP-Link TL-SF1005D

Código PCXeon: 27241

Marca: TP-Link | Part Number: TL-SF1005D

Estado: Nuevo | EAN: 6935364020064

TP-Link
No units available
Out stock
€8.47
7,00 € without VAT
Out stock

Este producto no está disponible en este momento. Podemos enviarle un aviso cuando esté disponible si nos facilita su email.

Información básica sobre protección de datos (RGPD|LOPD-gdd)

Responsable: PCXEON TECHNOLOGY, S.L.U.
Finalidad: Envío de información periódica de nuestras actividades, productos y/o servicios por medios electrónicos.
Legitimación: Consentimiento del interesado.
Destinatarios: No se cederán datos a terceros, salvo obligación legal.
Derechos: Acceder, rectificar, limitar y suprimir los datos, así como presentar una reclamación ante la autoridad nacional de control, como se explica en la información adicional.
Información Adicional: Puede consultar la información adicional y detallada sobre Protección de Datos en nuestra "Política de Privacidad"

I have read and accept the PCXEON Privacy Policy.
Producto Original

5 RJ45 to 10/100 Mbps with automatic speed detection, MDI/MDIX automatic support. Energy-saving technology for Ethernet that reduces consumption to 60%. IEEE 802.3x flow control allows reliable data transmission. Plastic housing, desktop design. Plug and Play, without any additional configuration.

What this product is for

The TL-SF1005D is an overlay switch with 5 ports to 10/100 Mbps that allows you to easily expand your cable network. All ports support automatic MDI/MDIX, which prevents you from having to worry about what cable you should use. The TL-SF1005D supports Full Duplex mode and processes data at a speed of 200 Mbps, making it the ideal option to expand a high performance cable network. In addition, thanks to its innovative energy efficiency technology, the TL-SF1005D saves up to 60% of electrical energy, making it an ecological solution for your home network or workplace.

High benefits

The Fast Ethernet TL-SF1005D switch features 5 RJ45 to 10/100 Mbps ports with automatic speed negotiation. All ports support the Auto MDI/MDIX function, which eliminates the need to use a cross cable or uplink ports. The TL-SF1005D has switching architecture without relay locks and filtering packages at the maximum speed of the cable to achieve optimal performance. It supports 10 K jumbo frame, which significantly improves the performance of large file transfers. In addition, its support for IEEE 802.3x flow control in Full Duplex and Back-Pressure mode in Half Duplex mode, allows the TL-SF1005D to relieve traffic congestion as well as increase operating reliability.

Easy to use

The automatic features of this Ethernet switch allow a Plug and Play installation without complications. No configuration is required. Automatic detection MDI/MDIX makes the use of cross wires unnecessary. The automatic port detection function identifies the network device's link speed (10, 100 Mbps) and intelligently adjusts it to ensure compatibility and best performance.



Features :

  • Innovative energy efficiency technology that saves up to 60% energy
  • Supports IEEE 802.3x flow control in Full Duplex and Back-Pressure mode in Half Duplex
  • Unlocked switching architecture for the forwarding and filtering of packages at maximum cable speed for optimal performance.
  • Automatic detection MDI/MDIX makes the use of cross wires unnecessary.
  • Supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
  • Smart integration of 10 Mbps, 100 Mbps and 1000 Mbps hardware thanks to automatic port negotiation
  • Its fanless design ensures silent operation
  • Desktop design
  • Simple installation via Plug and Play

Specifications:

Interfaces5 ports RJ45 to 10/100 Mbps
Automatic negotiation, MDI/MDIX automatic
External power supply100-240 V AC, 50/60 Hz
Number of VentilatorsFanless
Dimensions (W X D X H)4,1 x 2,8 x 0,9 inches (103,5 x 70 x 22 (mm)
Power consumptionMaximum: 2.2W
SOFTWARE FEATURES
Transfer methodStore-and-Forward
Advanced functionsEnergy-saving technology, consumption savings up to 60%
802.3x flow control, Back-Pressure support
Auto-Uplink support in all ports
OTHER
CertificationsFCC, CE, RoHs
Package ContentSurface switch with 5 ports to 10/100 Mbps
Current adapter
User manual
System requirementsMicrosoft® Windows® 8/7/Vista/XP , MAC® OS, NetWare®, UNIX® or Linux.
Environmental factorsOperating temperature: 0°C40°C (32°F104°F);
Storage temperature: -40°C70°C (-40°F158°F);
Operating humidity: 10%90% without condensation;
Storage humidity: 5%90% without condensation
