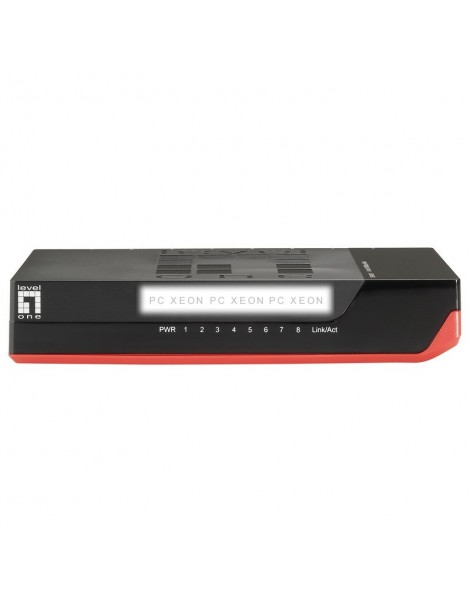

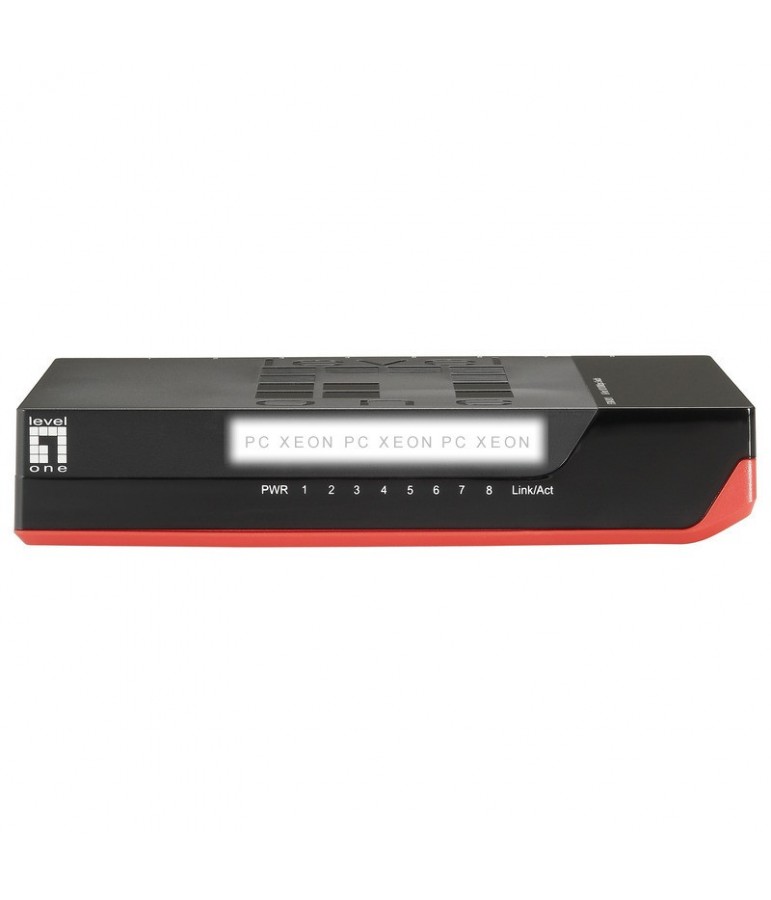

Level One FSW-0811 Switch 8 Fast Ethernet Ports 530140

Código PCXeon: 39169

Marca: Level One | Part Number: 530140 FSW-0811

Estado: Nuevo | EAN: Not specified

Delivery in 24H
Few units
€15.95
13,18 € without VAT
Few units
Producto Original

The FSW-0811 LevelOne is an 8-port compact Fast Ethernet Switch. It is a high performance, cost-effective and easy-to-use network switch to expand the home and office network.

Features:

Plug-and Play expansion of home network or office The 8 port Fast Ethernet switch LevelOne is an easy-to-install "plug-and-play" switch, which allows the user to either create a Local Area Network (LAN) or connect additional network devices such as network cameras, storage devices or printing servers to an established network.
Fast Ethernet Switching Architecture The FSW-0811 sends 200Mbps of bandwidth by port and incorporates a cable and non-lock speed switching architecture, for a perfect transfer of data through the network. All ports support Auto-MDI/MDIX cense, eliminating the need for cross wires or connection ports. Each port can be used as a general network port or as connection ports within a router, server, hub or other network switch.
Activated Connection Detection : A green device LevelOne you can tell if there is activity in each single LAN port. If a 5-port switch has only 3 active devices connected to it, it saves energy as traffic is not directed to the 2 inactive ports.
Detection of Cable Length: The switch is able to detect the distance of the connected device and adjust its energy according to this. For example, if on a green switch LevelOne there is a computer connected to 10 meters away will consume less energy than a computer connected to 100 meters.
Sleep mode: The device will enter sleep/wait mode when connected devices are turned off or active connections are not detected. This helps save energy for long periods of network inactivity, such as nights, weekends and holidays.



System Specifications
Buffer Memory (KB): 96KB
Connectors and Cabling: 8 x 10/100Base-TX RJ-45 Port
Indicator: Power; Link/Active
Transmission Method: Store-and-Forward
Power:
Power Consumption: 4.8W
Power Input: 100-240V AC, 50-60 Hz, DC 9V, 0.6A, External Power Adapter
Standards & Protocols:
IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3az Energy Efficient Technology
Performance
Backplane (Gbps): 1.6Gbps
MAC Address Table: 1K
Data Transfer Rate: 10/100Mbps
Packet Forwarding Rate:
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Environment
Power Saving: IEEE 802.3az Energy Efficient Technology: Active Link Detection; Length Detection Cable; Sleep Mode
Temperature (°C):
Operating: 0°C 40°C
Storage: - 40°C 70°C
Humidity (Non-condensing):
Storage: 5% 90%
Operating: 10% 90%
Physical Specifications
Dimensions (W x D x H mm): 85 x 141 x 27.5 mm
Others
Approval and Compliance: CE; FCC Class B
Deployment:
Desktop and wall-mountable
