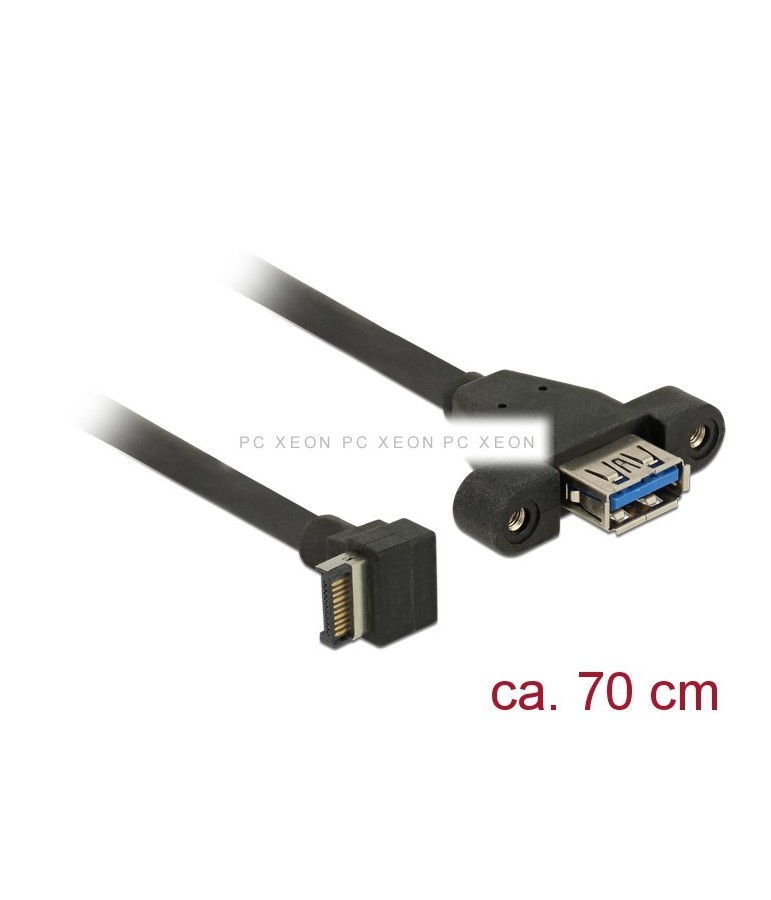

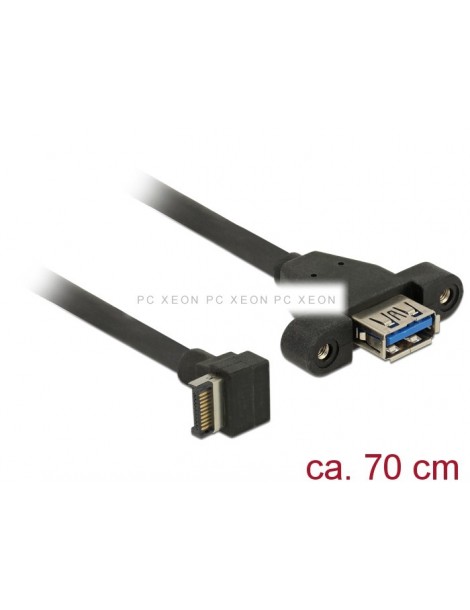

Delock 85325 USB 3.1 Gen 2 key A male 20 pin USB 3.1 Gen 2 Type-A

Código PCXeon: 35380

Marca: Delock | Part Number: 85325

Estado: Nuevo | EAN: 4043619853250

Delock
Delivery in 7 days
On demand
€31.90
26,36 € without VAT
On demand
Producto Original

Important

Notice If you wish to place a special order, please contact us beforehand, as some items may not be available for shipment after April 13, 2026.

Our company will be closed from March 13, 2026 to April 10, 2026, inclusive.

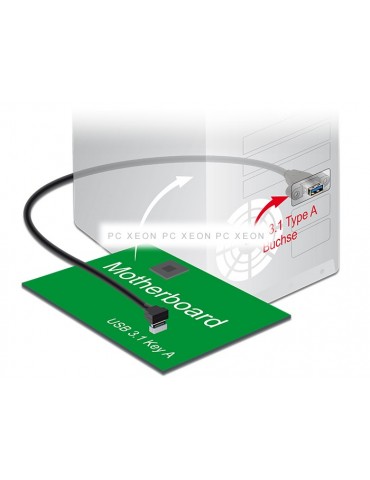

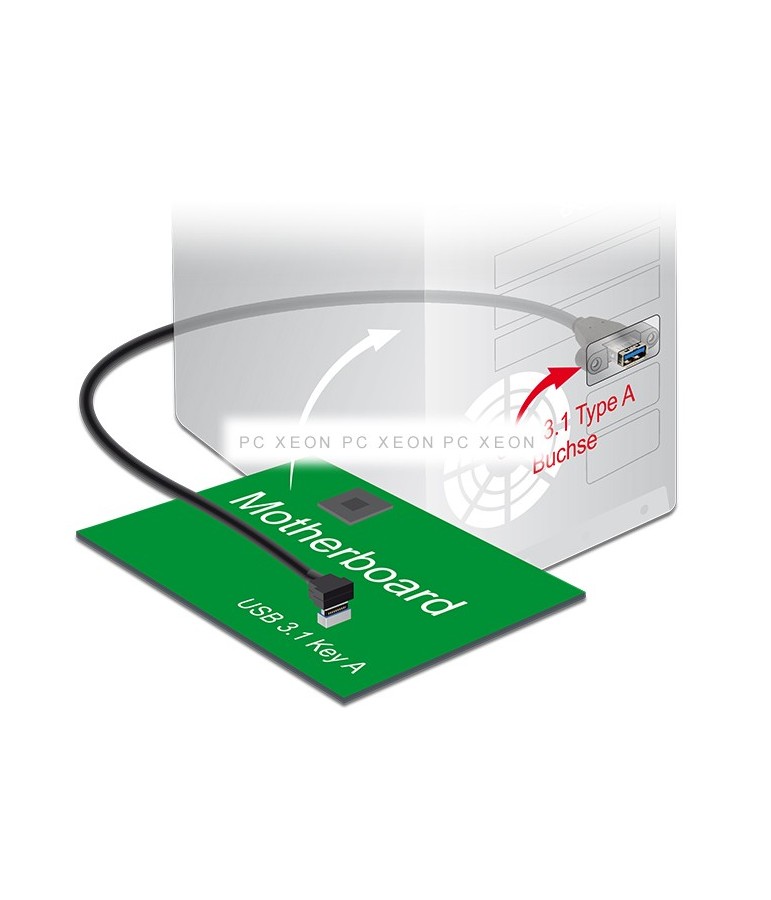

This cable Delock is connected to the USB 3.1 Gen 2 internal A key plug on a base plate or PCI Express card (for example, Delock 89603) and can be used to extend a USB connection. The Type-A USB connector can be connected with two screws, e.g., in a slot holder or a chassis with the corresponding slide. In this way, it is possible to install a USB port in an easily accessible position.

Technical specification

• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Key A 20 pin male
with an angle of 90° ▪
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
• Two screw installation holes with a separation of 31 mm, with M3 thread
• Standard cable value:
data line 28 + 30 AWG
power supply 26 + 28 AWG
• Resistant: 5.1 kΩ
• Cable diameter: approx. 6 mm
• Data transfer speeds up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Length included connectors: approx. 70 cm

System requirements

• PC with a free A USB 3.1 Gen 2 key interface

Package Content

• USB cable

Package

• Poly bag
