Technical specification

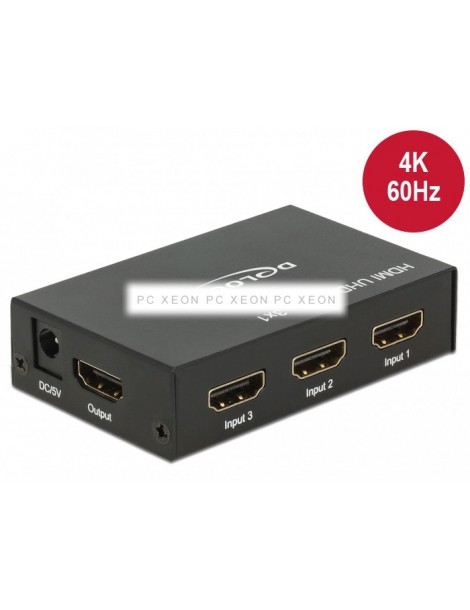

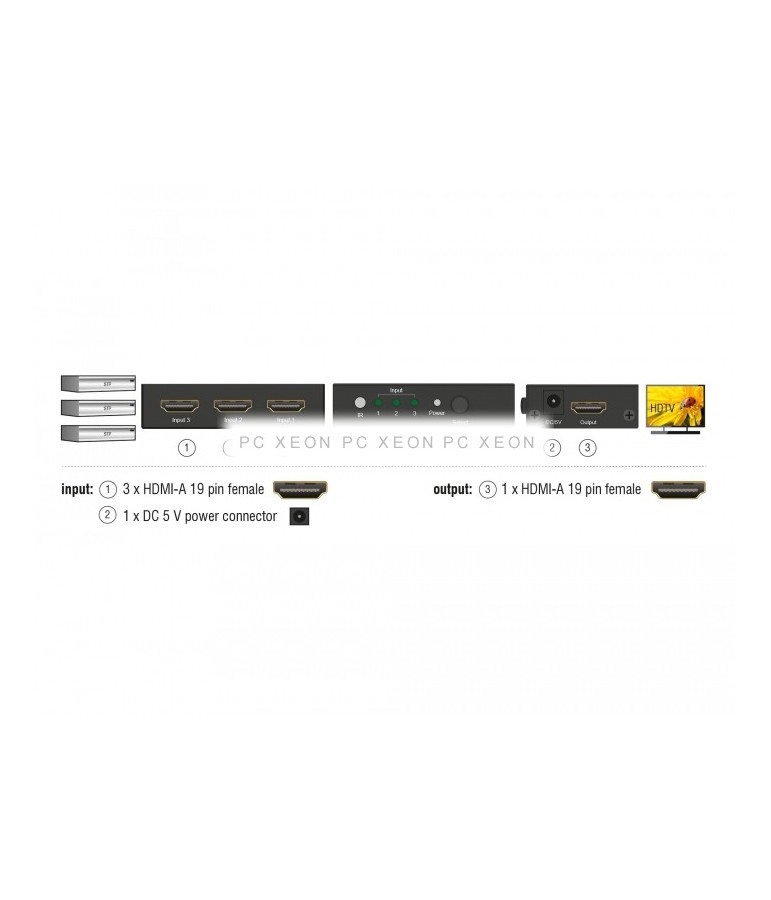

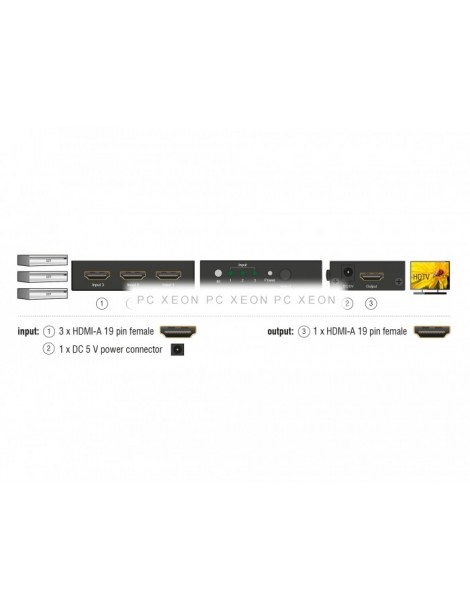

• Connectors:
Entry:
3 x HDMI-A 19 pin female
1 x 5 VCC power connector
Departure:
1 x 19 pin female HDMI-A
• Port switching: automatic function, via button or through the remote control of infrared

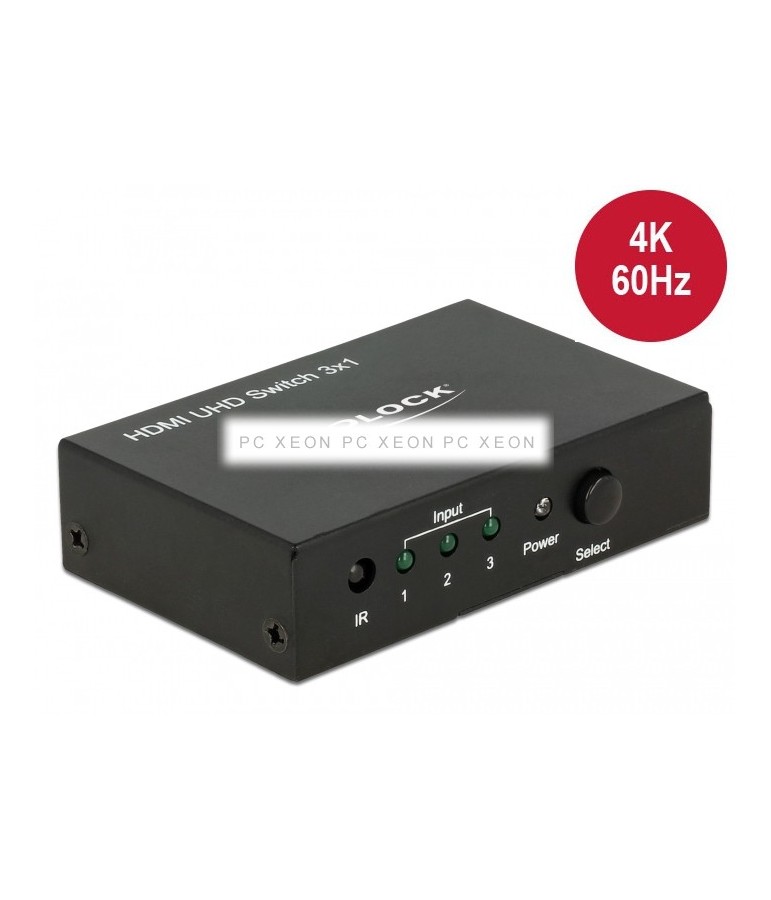

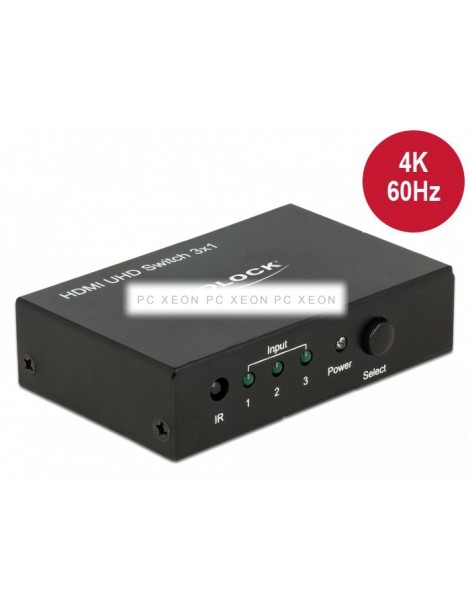

• LED indicators for active HDMI port
• High Speed HDMI specification
• Supports 3D displays
• Compatible with HDCP 1.4 and 2.2
• Compatible with HDR
• Maximum resolution 3840 x 2160 @ 60 Hz (depends on system and connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps, 18 Gbps max.
• Energy consumption: max 2.0 W
• Metallic housing
• Color: black
• Dimensions (LAxANxAL): approx. 80 x 51 x 20 mm

Power Supply Specifications

• Electric current
• Entrance: 100 240 VCA / 50 60 Hz / 0.3 A
• Departure: 5 V/ 1 A
• Outer land, more interior
• Dimensions:
interior: ø approx. 2.1 mm
Exterior: ø approx. 5.5 mm
Length: approx. 9 mm

System requirements

• HDMI female port available
• HDMI cable

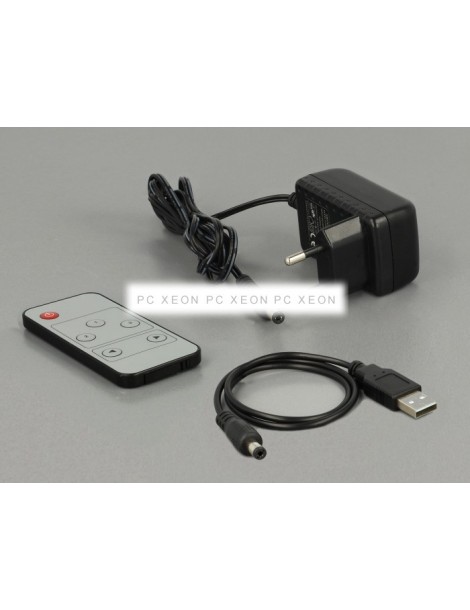

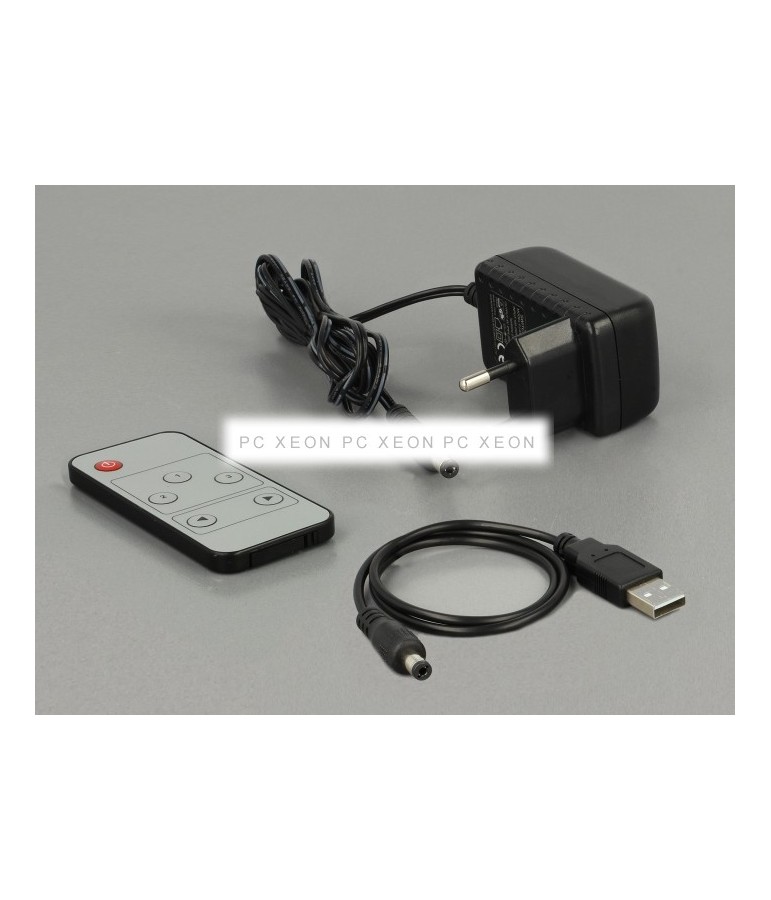

Package Content

• HDMI switch
• Remote control
• USB power cable, cable length: approx. 0.5 m
• External power supply
• User manual

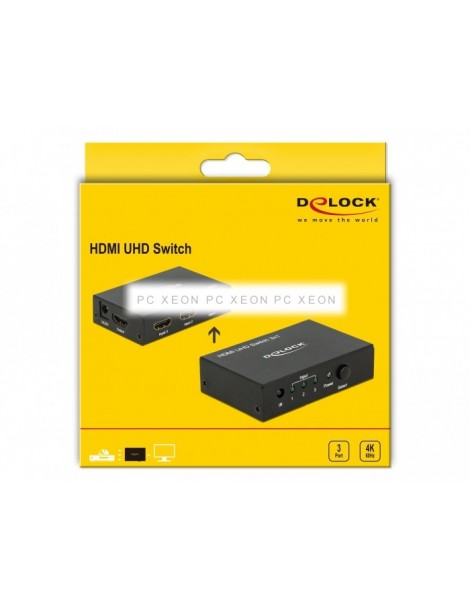

Package

• Retail Box
