Technical specification

• Connector: 1 x male SMA
• GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM,
DECT, LoRa
• Frequency Interval:
698 - 791 MHz
824 - 960 MHz
1420 - 1520 MHz
1750 - 2170 MHz
2450 - 2650 MHz
3480 - 4200 MHz
4400 - 4900 MHz
• Winning of the antenna: -1 - 3 dBi
• Impedance: 50 ohmos
• VSWR: 3,0 - 5,0
• Polarization: Linear and vertical
• Operating temperature: -10 °C 55 °C
• Housing material: ABS
• Color: black
• Dimensions (LAxANxAL): approx. 156,16 x 33,21 x 6,17 mm

System requirements

• Device with an available SMA connector

Package Content

• Antenna

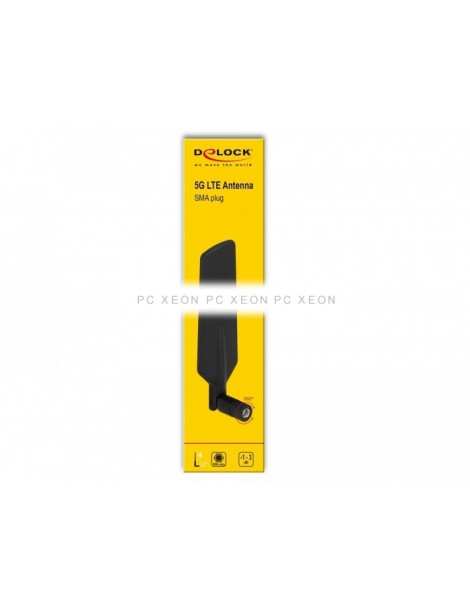

Package

• Retail Box
