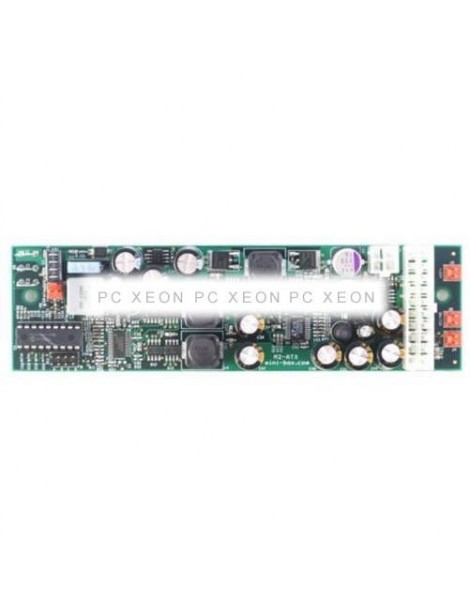

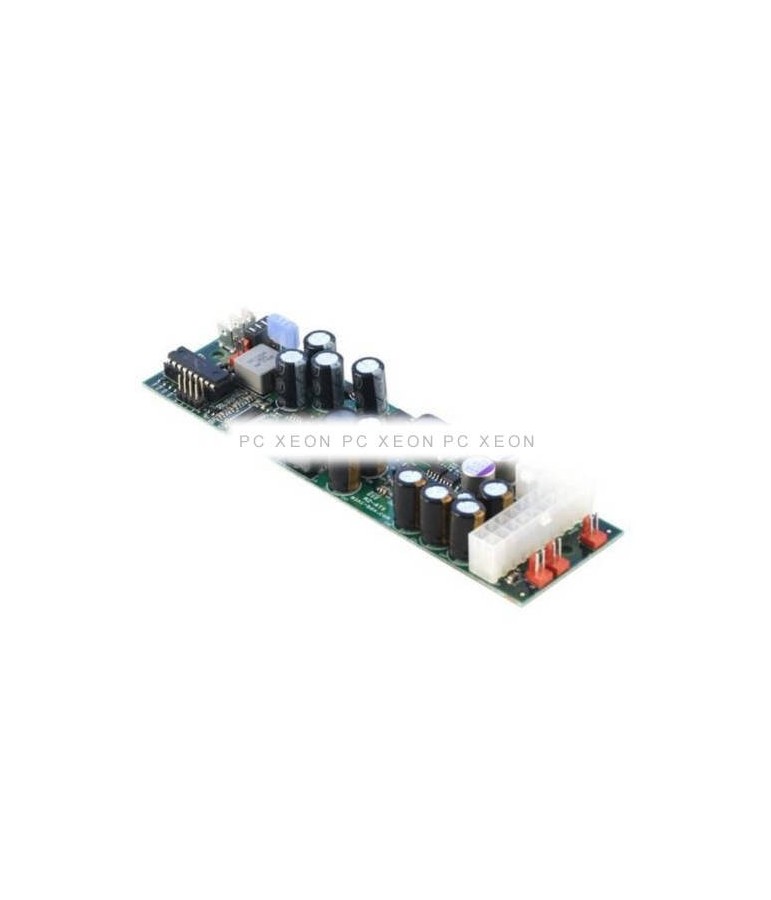

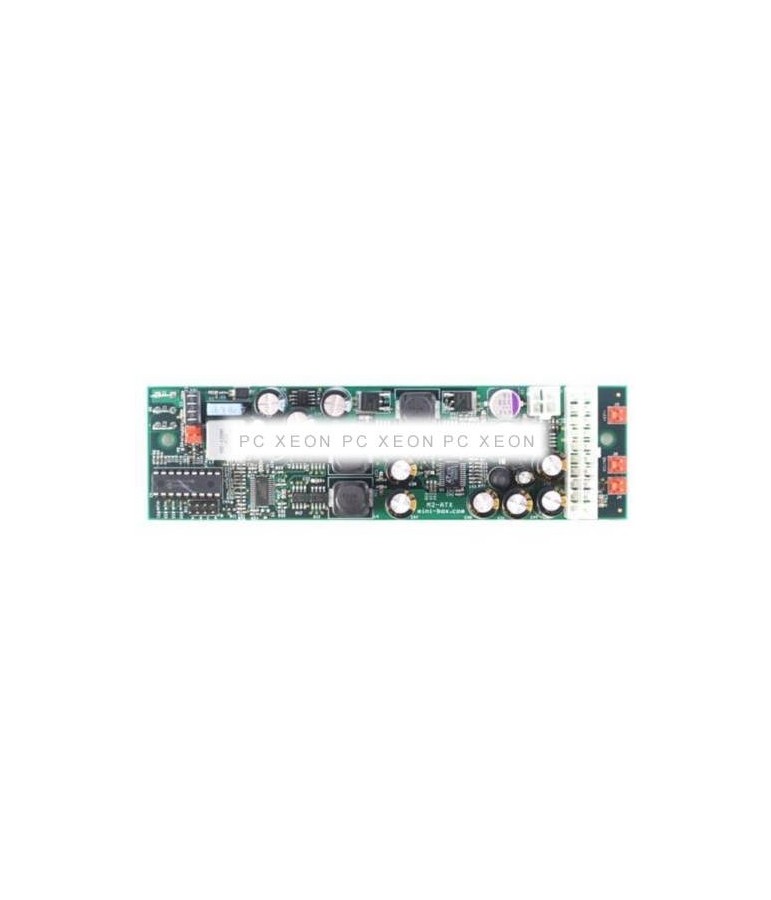

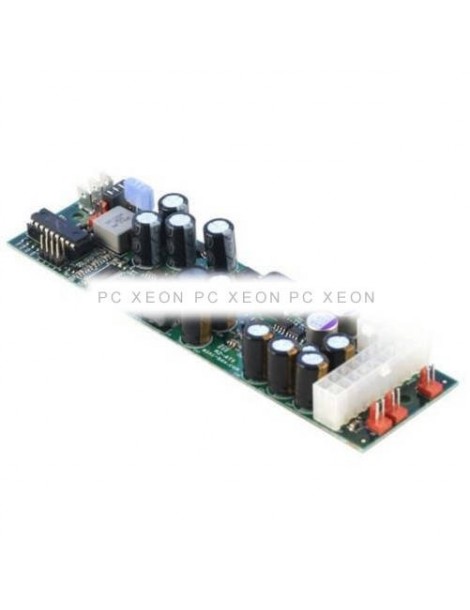

Intelligent Source M2-ATX-HV 140W DC-DC CAR-PC 6-32V

Código PCXeon: 19509

Marca: - Sin marca/Genérico - | Part Number: IT-FUEN06

Estado: Nuevo | EAN: Not specified

No units available
Out stock
€69.20
57,19 € without VAT
Out stock

Este producto no está disponible en este momento. Podemos enviarle un aviso cuando esté disponible si nos facilita su email.

Información básica sobre protección de datos (RGPD|LOPD-gdd)

Responsable: PCXEON TECHNOLOGY, S.L.U.
Finalidad: Envío de información periódica de nuestras actividades, productos y/o servicios por medios electrónicos.
Legitimación: Consentimiento del interesado.
Destinatarios: No se cederán datos a terceros, salvo obligación legal.
Derechos: Acceder, rectificar, limitar y suprimir los datos, así como presentar una reclamación ante la autoridad nacional de control, como se explica en la información adicional.
Información Adicional: Puede consultar la información adicional y detallada sobre Protección de Datos en nuestra "Política de Privacidad"

I have read and accept the PCXEON Privacy Policy.
Producto Compatible

140W DC internal source and supports an extended range of 6V to 32V.

Generally used in Mini-ITX equipment.

It is ideal for mounting CarPCs or equipment that are fed by batteries.

Ideal smart source for CarPC's or for those who are powered by batteries, as it allows a variable range of voltages ranging from 6V to 32V, which prevents resets or overvoltages, when booted or for the vehicle's engine.

It has 8 selectable timer modes that allow 8 different ignition settings, ignited pc based on the signal 'Ignition' or on the engine. It can also be configured as a standard power supply, not taking this signal into account.

It is fully configurable according to the use of the vehicle and the PC. It is also able to check the battery condition and if it has a voltage less than 11V, completely turn off the PC until the voltage is recovered, not to leave it unfeasible.



Features:



- Source of 140W.
- Adjustable operation.
- Fuse security.
- Allows an entry voltage between 6 and 32V.
- It has a switch to configure its boot and off.

General data
Model
M2-ATX HV
Power
140W
Compatibility
Mini-ITX
Voltage
6V 32V
Maximum output
140W
Range Temperature
-40oC 85oC

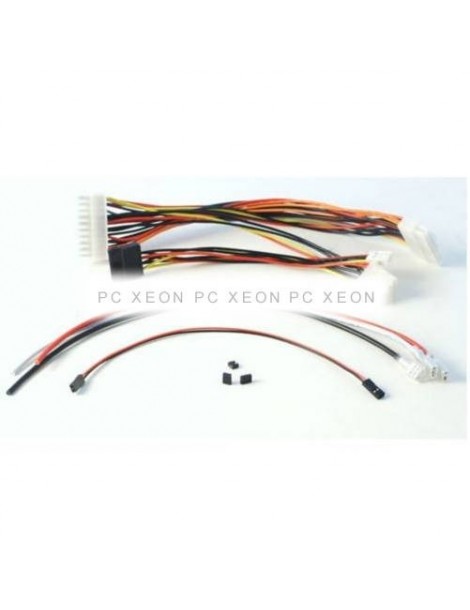

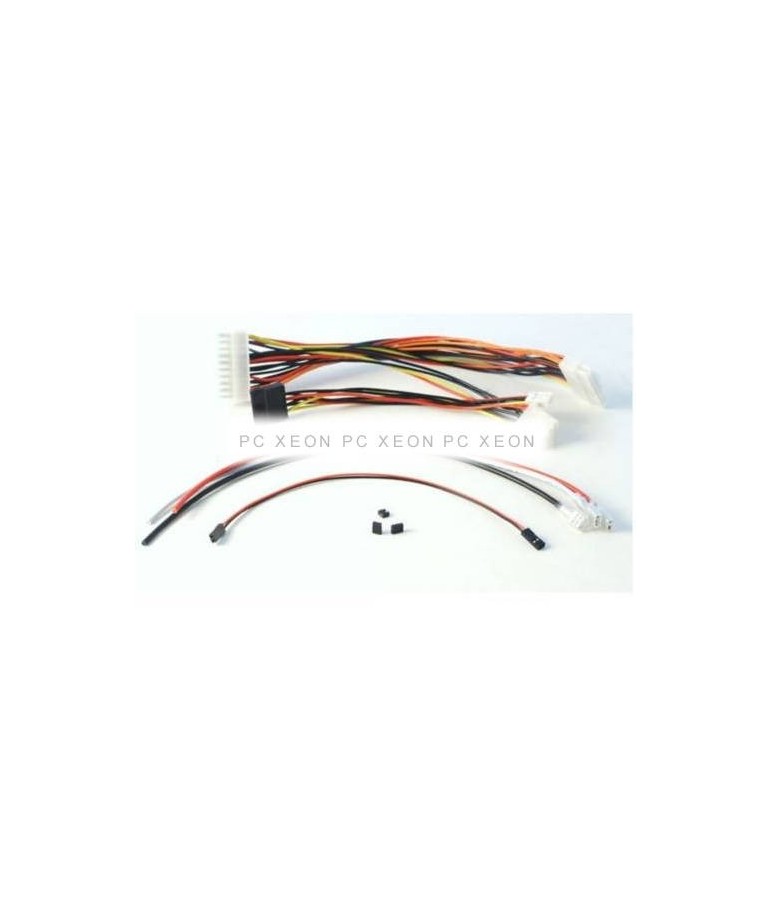

Includes
- DC-DC converter
- ATX 20-Pin power supply
- Cable for HDD, FDD and SATA
- Switch cable ON/OFF
- Jumpers for configuration

Maximum Departure (W)
Departure voltage(V)
Departure Intensity
Regulation
Picos Intensity
5VSB
1.5A
1.5%
2A
+3.3V
6A
1.5%
8A
+5V
6A
1.5%
8A
+12V
7A
2%
8A
-12V
0.15A
5%
0.2A

Dimensions
Width x High x Fund
160mm x 95mm x 45mm.
Weight
200gr.
