Source FSP Group FSP350-60EVF 350W

Código PCXeon: 24852

Marca: FSP Group | Part Number: FSP350-60EVF

Estado: Nuevo | EAN: Not specified

FSP Group
No units available
Out stock
€95.00
78,51 € without VAT
Out stock

Este producto no está disponible en este momento. Podemos enviarle un aviso cuando esté disponible si nos facilita su email.

Información básica sobre protección de datos (RGPD|LOPD-gdd)

Responsable: PCXEON TECHNOLOGY, S.L.U.
Finalidad: Envío de información periódica de nuestras actividades, productos y/o servicios por medios electrónicos.
Legitimación: Consentimiento del interesado.
Destinatarios: No se cederán datos a terceros, salvo obligación legal.
Derechos: Acceder, rectificar, limitar y suprimir los datos, así como presentar una reclamación ante la autoridad nacional de control, como se explica en la información adicional.
Información Adicional: Puede consultar la información adicional y detallada sobre Protección de Datos en nuestra "Política de Privacidad"

I have read and accept the PCXEON Privacy Policy.
Producto Original

This 350 watt FLEX ATX Feeding Source is designed and certified to give more than 85% in operational efficiency. It adapts to most of the ATX Flex configurations. All models FSP OEM are qualified for RoHS, without lead, ecological products (G.P) global state respectful of the environment.

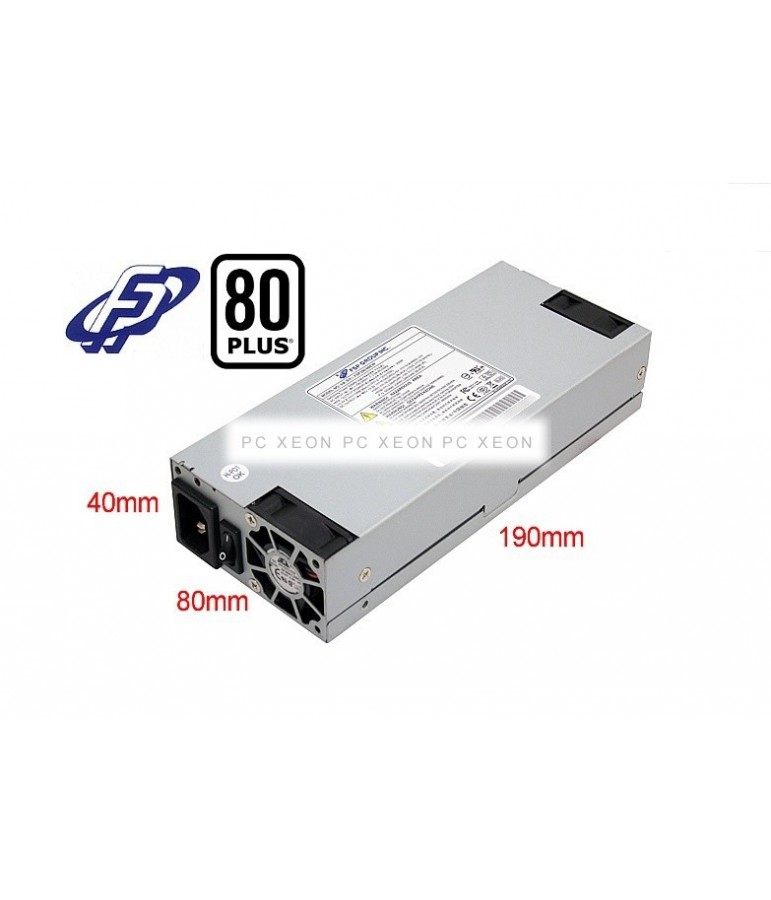

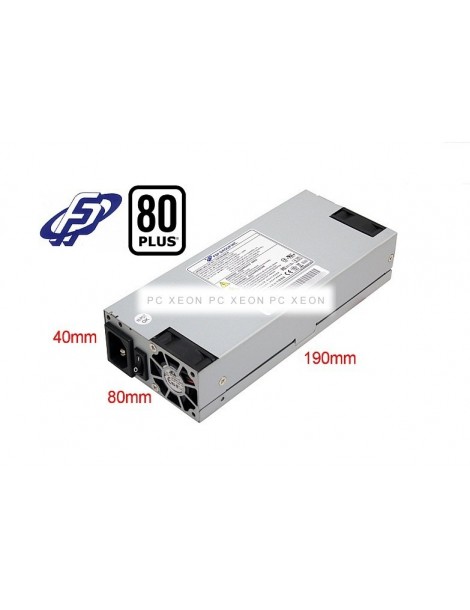

Measures : 40 x 80 x 190 mm.

Part Numbers Compatible : 9YA3500700 , 6LL0535805GP , FSP350-60EVF , 9YA3500703 , ...

Features :

- 1U, Shuttle PSU
- Measures : 40x80x190mm.
-Voltage: 110/230V (Full range).
- Certificates: All, 80+
- Connectors: 20+4pin, 2Molex, 2Floppy, P4.
- Weight: 1Kg.
- Includes 1 Fan 4 cm intern

-Options: 24pin, SATA, 6pin adaptors.



Model NameFSP350-60EVF
Wattage350W
Dimension190mm (L) × 81.5 mm (W) × 40.5mm (H)
Product HighlightEfficiency Level80 Plus
 Altitude2000M
 PMBusFor standard, advanced server, NAS and industrial power system.
General SpecificationEffciency80% 230VAC
 Voltage Regulation+3.3V, +12V, +5V, +5SB: ±5%
-12V: ±10%
Input Electrical SpecificationInput Frequency47 63 Hz
 Input Current115V@ 7.0 Amps-rms maximum
230V@ 3.5 Amps-rms maximum
Output SpecificationHold-up time115V/60Hz 17mSec. Minimum@100% Load,
230V/50Hz 17mSec. Minimum@100% Load
 Ouput Voltage Regulation+3.3Vdc output : +3.5 Vdc minimum, + 4.3Vdc maximum
+5Vdc output : +5.5 Vdc minimum, + 7Vdc maximum
+12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum
 Ripple & Noise115V-rms/230V-rms 5V 20ms Maximum
115V-rms/230V-rms 12V 20ms Maximum
 Over current protection3.3V:50mV p-p
5V:50mV p-p
12V1:120mV p-p
12V2:120mV p-p
-12V:120mV p-p
5Vsb:50mV p-p
Environmental RequirementTemperature RangeOperating : 0 to +50°C
Storage :-20 to +80°C
 HumidityOperating : 5-85% to % RH, Non-condensing
Storage : 5-95% to % RH, Non-condensing
 MBTFThe power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25°C, maximum-output load, and nominal AC inout voltage
SafetyCE,FCC,TUV,UL/cUL,CCC

Output Voltage and Current Rating

 +3.3V+5V+12V1+12V2-12V+5Vsb
Ripple-Noise(R-P) mV50mV50mV120mV120mV120mV50mV
Regulation Load %±5%±5%±5%±5%±10%±5%
Output Max16A19A16A16A0.3A2A
Output Min.(A)0.1A0.3A1A1A0A0A

Notes



  • 5V, 3.3V, 12V, -12V Will have the regulation to 10% when all load take off.
  • The +3.3V and +5V total output shall not exceed 105 watts.
  • The 12V1 and 12V2 combined current shall not exceed 25A.
  • The total output shall not exceed 350 watts
