Features

• Support for processors Intel ? Haswell ?.
• Single 12V Rail Technology.
• Fan With thermal speed control, for optimal cooling and silent operation.
• OCP, OVP and SCP protections.
• Factor: SFX.
• Power: 500w.
• Fan: 8cm thermoregulated.

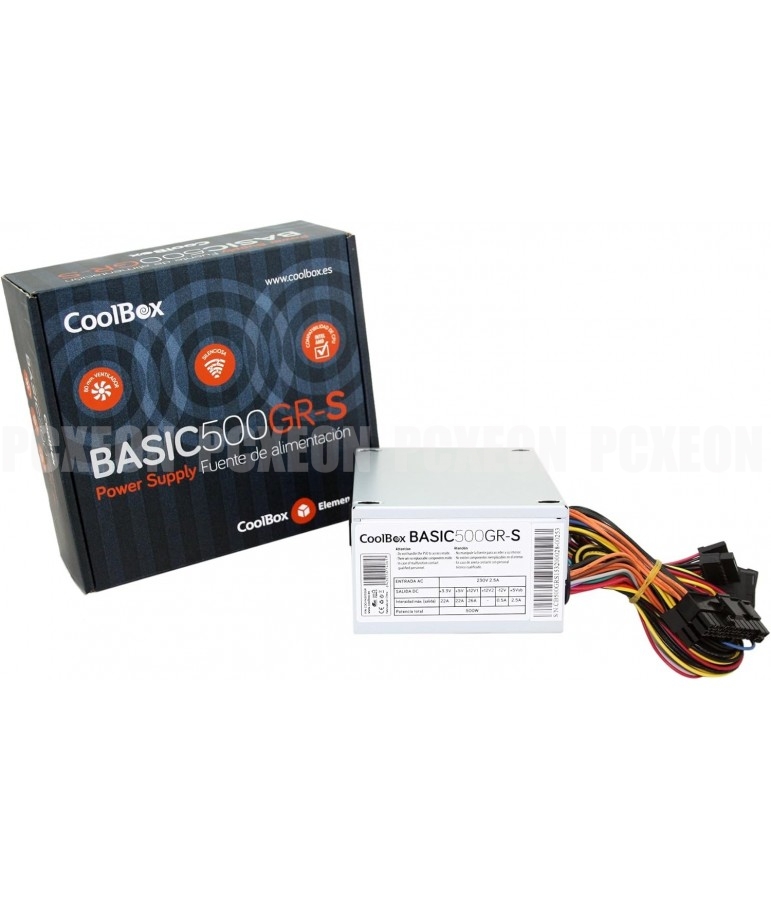

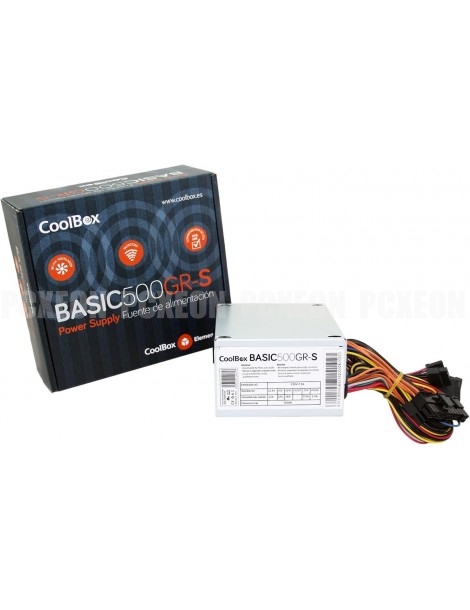

Specs CoolBox Basic500gr-'s

• Ports and interfaces
  • Energy feeder for mother card: 20 + 4 Pin ATX
  • Power connectors (4 PIN) peripherals (Molex): 1
  • Number of SATA power connectors: 3
  • CPU P4 Connector (4-Pin): 1
  • ATX power connector (20 + 4 pin): If
  • Connector to diskette unit: If

• Weight and dimensions
  • Width: 125 mm
  • Depth: 100 mm
  • Height: 62 mm
  • Weight: 593 g

• Power control
  • Total power: 500 W
  • AC input voltage: 230 V
  • Entrance current: 2.5
  • Maximum output current (+ 3.3V): 22 a
  • Maximum output current (+12 V1): 26 a
  • Maximum output current (+ 5V): 22 a
  • Maximum output current (-12v): 0.5 A
  • Maximum output current (+ 5VSB): 2.5 to
  • Power protection functions: Overcurrent, over revolt, short circuit

• Environmental conditions
  • Operational temperature interval: 0 - 50 ° C
  • Relative humidity interval for operation: 10 - 85%

• Design
  • Color of the product: White
  • Type of cooling: Active
  • Fan diameter: 8 cm
  • Number of fans: 1 Fan(is)

• Performance
  • Use: PC
  • Shape factor power Supply (PSU): SFX
  • Middle time between failures: 100000 h
  • Chord: If
  • Certification: EC, Eco-Raee
  • Compatible: Eps1U (2.1), Intel TFX12V V2.3
