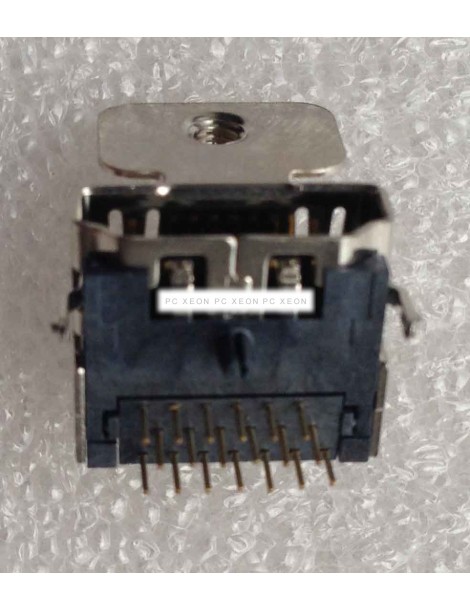

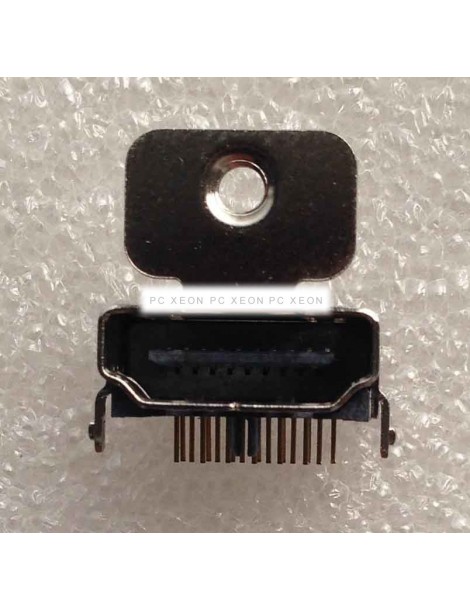

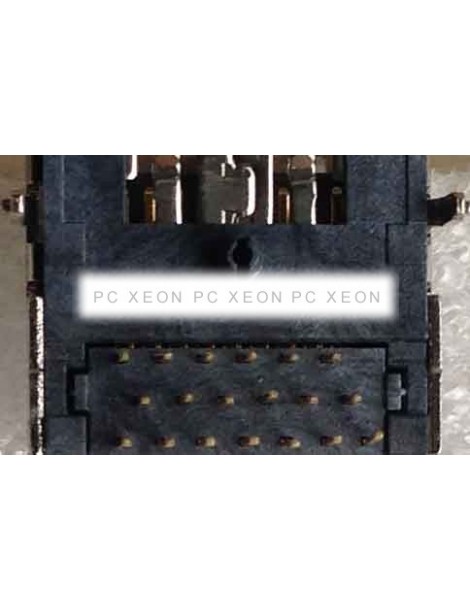

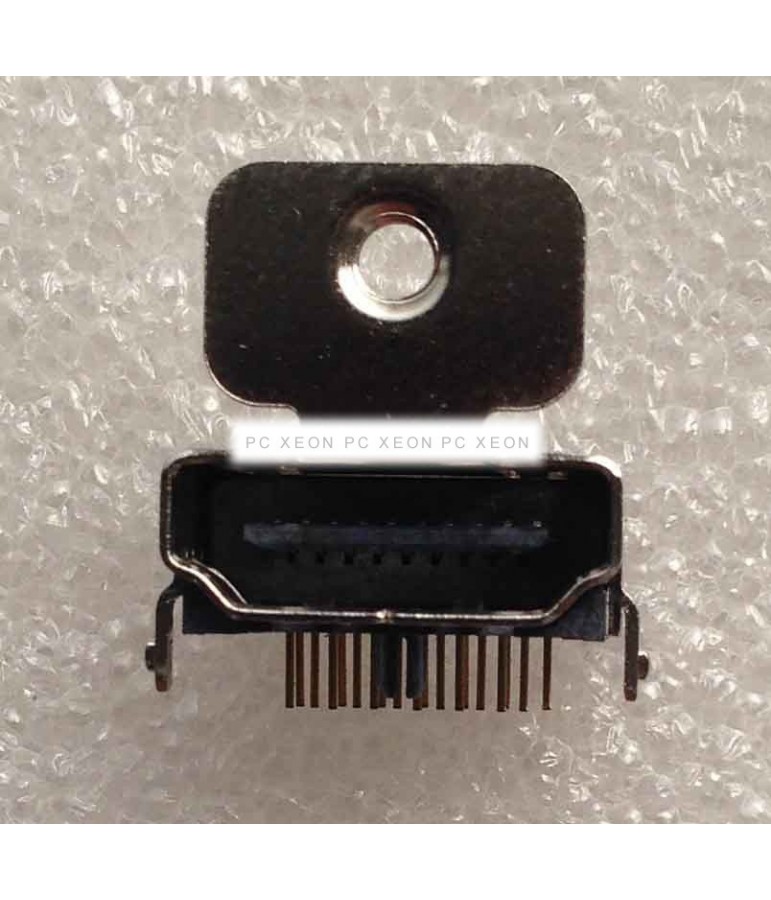

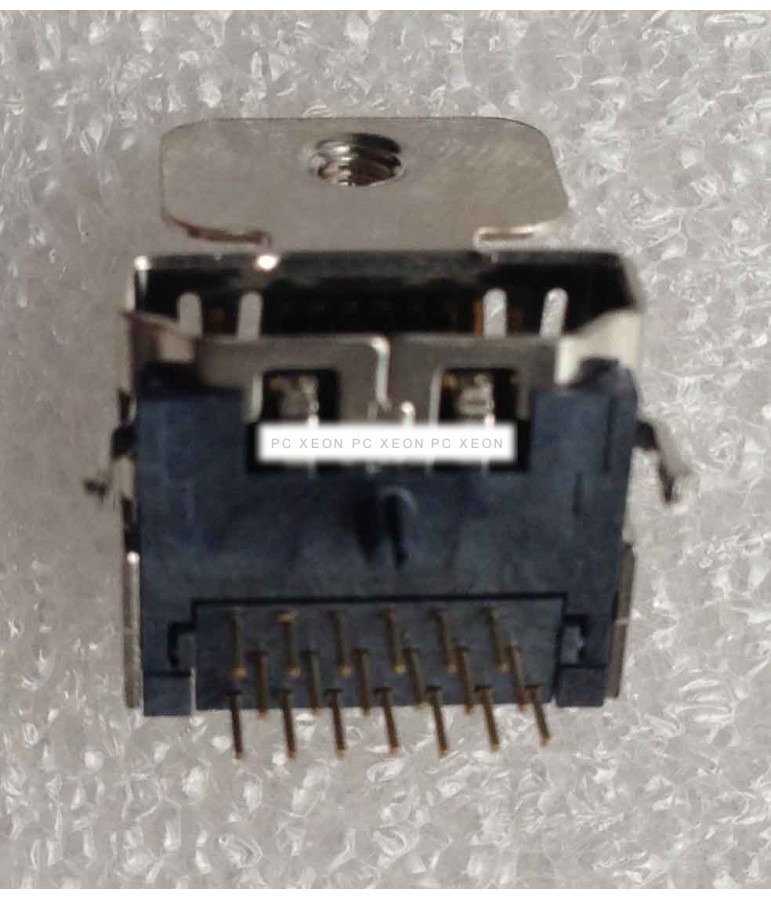

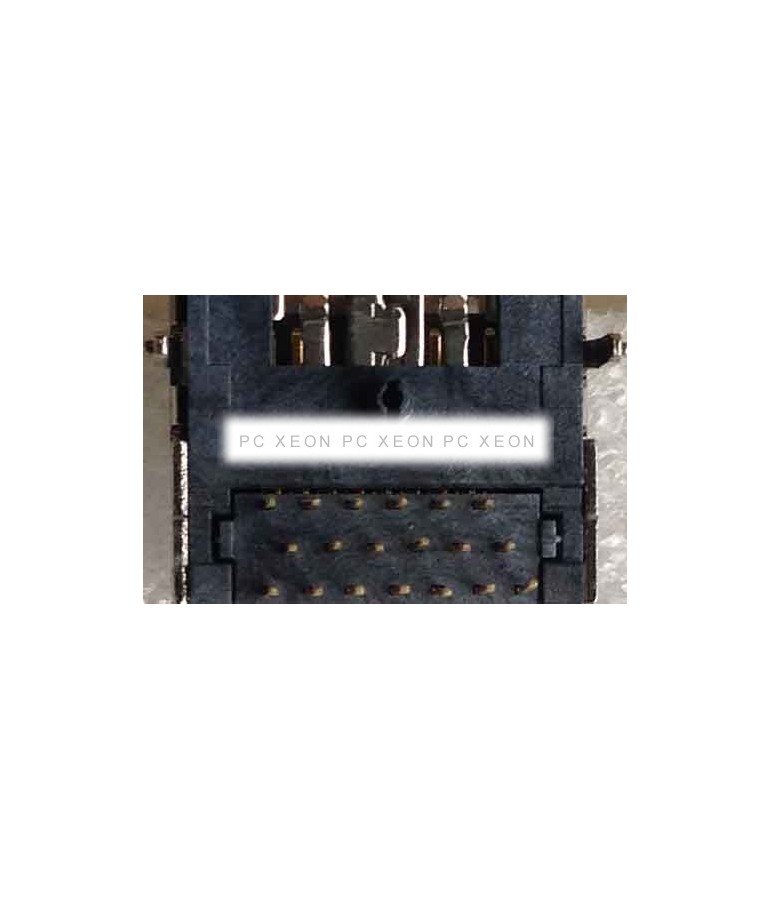

Features:

•  MACHO, ACODADO, HDMI, AGUJERO PASANTE
•  Type of connector: HDMI
•  Gender: Receptacle
•  N.o of Contacts: 19
•  Contact Termination: Through Hole Right Angle
•  Connector Mounting: PCB
•  Contact Plating: Gold
•  Contact Material: Copper
•  SVHC: No SVHC (20-Jun-2011)
•  Color: Black
•  Connector Mounting Orientation: Table I
•  Type of connector: HDMI
•  Contact Material: Copper alloy
•  Contact Plating: Gold on nickel
•  contact resistance: 10MOHM
•  Current range: 7A
•  Fuel power: UL94V-0
•  Insulation resistance: 1000Mohm
•  Insulator Material: Nylon 6,6
•  Lead Spacing: 0.5mm
•  N.o of Rows: 3
•  N.o of Ways: 19
•  Operational Temperature Max: 105°C
•  Operational Temperature Min: -40°C
•  Pitch Spacing: 3.96mm
•  Termination method: Welding
•  Voltage Rating V AC: 250V
•  Withstand Voltage: 1500V


** NOTE: To be able to install it you have to remove the brace elbow and the masses so that the connector does not move, but can be adapted.
