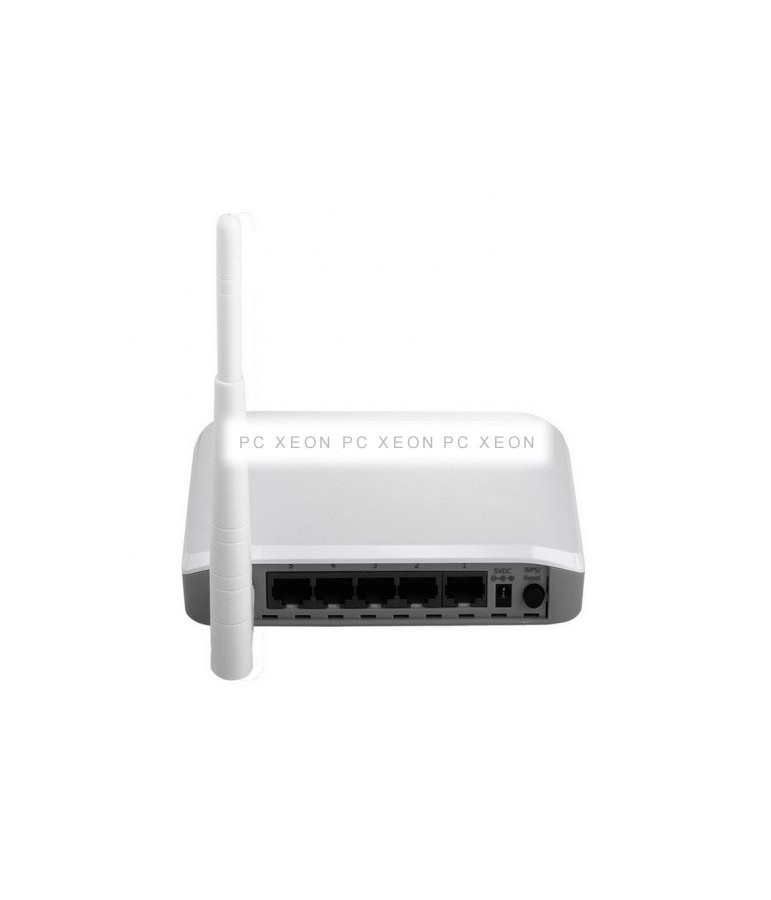

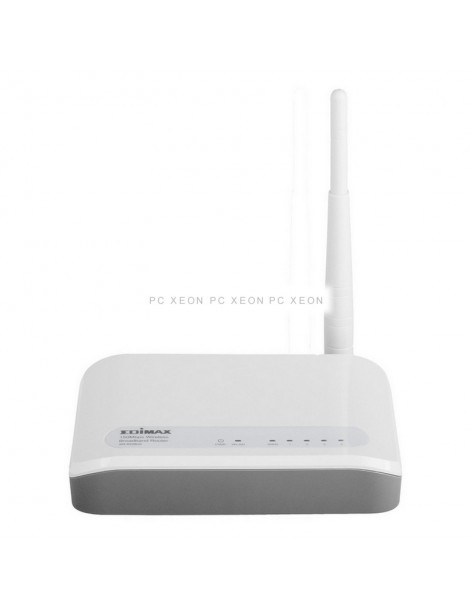

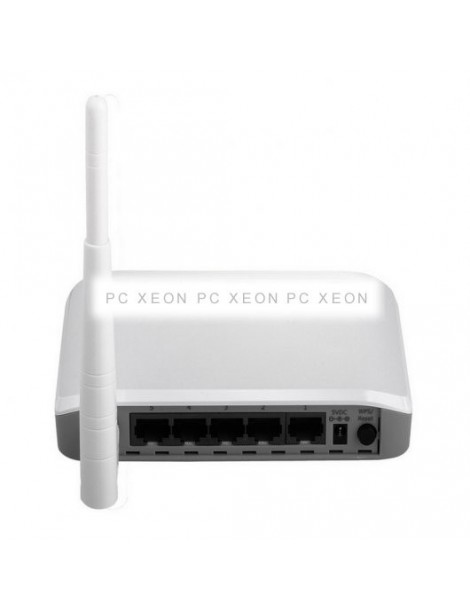

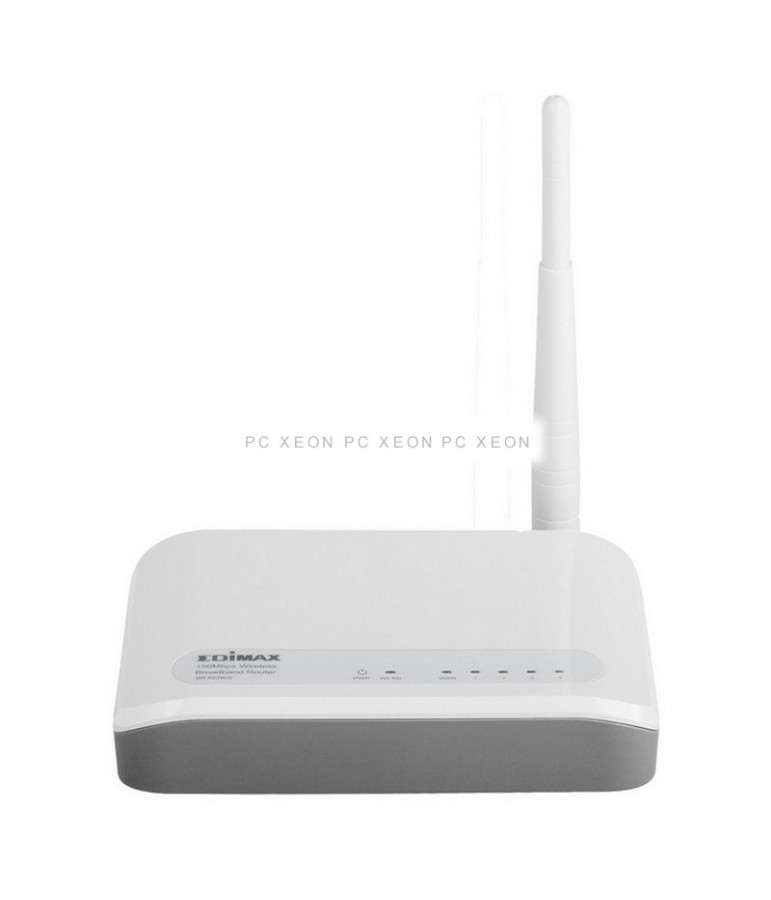

Edimax EW-7228APn Access point N150 EW-7228APN

Código PCXeon: 35469

Marca: EDiMAX | Part Number: EW-7228APN

Estado: Nuevo | EAN: 4710700927335

EDiMAX
No units available
Out stock
€18.00
14,88 € without VAT
Out stock

Este producto no está disponible en este momento. Podemos enviarle un aviso cuando esté disponible si nos facilita su email.

Información básica sobre protección de datos (RGPD|LOPD-gdd)

Responsable: PCXEON TECHNOLOGY, S.L.U.
Finalidad: Envío de información periódica de nuestras actividades, productos y/o servicios por medios electrónicos.
Legitimación: Consentimiento del interesado.
Destinatarios: No se cederán datos a terceros, salvo obligación legal.
Derechos: Acceder, rectificar, limitar y suprimir los datos, así como presentar una reclamación ante la autoridad nacional de control, como se explica en la información adicional.
Información Adicional: Puede consultar la información adicional y detallada sobre Protección de Datos en nuestra "Política de Privacidad"

I have read and accept the PCXEON Privacy Policy.
Producto Original

Range 802.11n Wireless Extender / Access Point
acting as a bridge between the wiring Ethernet and the 2.4 GHz IEEE 802.11b/g/n Wireless LAN, Wireless LAN Range Extender this / That your wireless access point can LAN Client Access both in cable connection and stations wireless network nodes.
Universal Repeater mode
The universal repeater mode allows this Extender / Access Point Range Extend the coverage and intensity of the current wireless signal for the environment. This standardized function is compatible with other access points and wireless routers. Users can use this function to build a large wireless network in a large space such as airports, hotels and schools, etc ...
Robust wireless LAN security (WPA, WPA2 Support)
Except for basic security control using ESSID and 64/128 bit of WEP encryption length of the key, the EW-7228APn also supports advanced security features, such as MAC access control, IEEE 802.1x authentication, TKIP, AES and hide ESSID. It provides a total solution for creating a secure wireless LAN network environment that can prevent all kinds of hackers intrusion.
Multi-lingual configuration assistant
A single multi-lingual configuration magician is provided on the CD included. Just make sure that the access point is correctly connected to the network without specifying the IP address of your PC before starting the settings. The EZMax Assistant will automatically detect the Range Extender/access point and guide you to follow a few simple steps to complete the setup within minutes.
Configuration Web
The EW-7228APn Allows you to configure this Extender / Access Point Range via the web user interface friendly with a browser.
Support for Green WLAN
The EW-7228APn has a smart Adapted Energy Transmission Protocol in smart control. When the wireless is inactive, the extender / Access Point Range Smartly adjusts production in the CPU transmission and discharge distance to reduce energy consumption by 26% 39% Comparing the energy consumption under the data is transmitted.

Features:

Meet IEEE 802.11b/g and support IEEE802.11n wireless standards
Provides EZMax wizard to simplify the network configuration process
Supports point to point and point to multipoint bridge point function
Supports WDS, Universal Repeater and AP client mode
Supports WPA, enhanced WPA2 security function and WPS configuration button
Supports WLAN Green to reduce energy consumption by CPU distance and download when use is inactive



General characteristics:

Hardware interface
5 x Fast Ethernet LAN
LED indicators: Power, WLAN, LAN
Removable antenna dipolo 3dBi x 1
WPS / Reset
MANAGEMENT
HTTP / TFTP Firmware Upgrade
Supports Web-based configuration
MEMORIA
2 MB Flash
16 MB SDRAM
ADAPTADOR DE ALIMENTATION
DC 5V, 0.6A
INSTALATION
14-language configuration assistant EZMax
CERTIFICATION
CE, FCC
SECURITY
64/128-bit WEP encryption and WPA-PSK, WPA2-PSK
Supports the Radius server authorization function
Supports DHCP Server / Client
MODULATION
2400 2484MHz
802.11b: CCK, DQPSK, DBPSK
802.11g: 64 QAM, 16 QAM, QPSK, BPSK, DSSS
802.11n: 64QAM, 16QAM, QPSK, BPSK
HUMEDAD AND TEMPERATURA
Operation 10-90% (without condensation) Storage: Max 95%. (without condensation)
Operation 0 40 degrees Celsius storage: -20 degrees Celsiu
FUNTIONS
Provide MAC address control
Support 4 SSID
Fallback car rate in case of obstacles or interference
Supports point to point and point to multipoint bridge point function
Supports WDS (Wireless Distributed System) Repeater mode
Supports the universal repeater mode
Support the AP Client mode
Supports WPS hardware button for easy wireless association
Support Green WLAN for Smart Energy Saving Growth Tx, Implicit Rx
Energy saving and CPU download
DIMENSIONS AND HEALTH POTENCE
26 (H) x 136 (W) x 90 (D) mm
11n: 14 ± 1.5 dBm,
11g: 15 ± 1.5 dBm
11b: 17 ± 1.5 dBm
