• Descatalogado

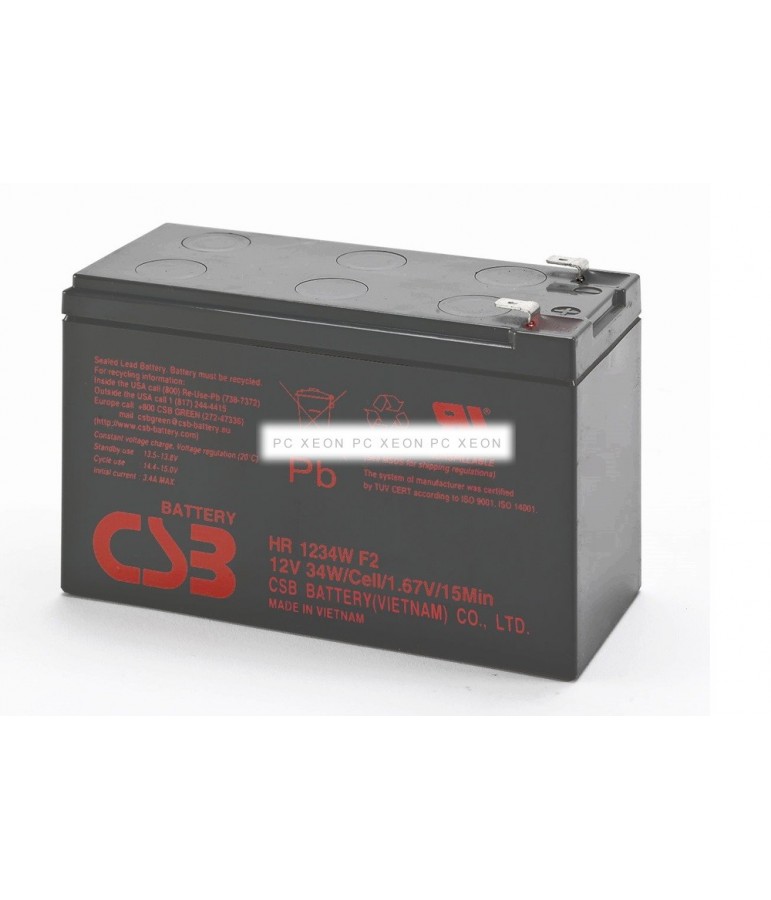

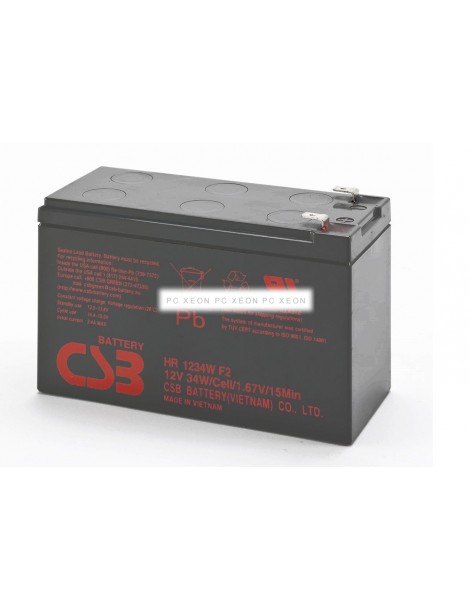

CSB HR-1234W battery 12 Volts 9 Amperios 34W

Código PCXeon: 33227

Marca: CSB Battery | Part Number: HR-1234W

Estado: Nuevo | EAN: Not specified

CSB Battery
Delivery in 3 weeks
On demand
€32.00
26,45 € without VAT
On demand
Mayor a 10
€26.02
21,50 €
sin IVA
Producto Original
CSB PLOMO BATERIA 12 34W 9 AH SPECIAL FOR SAI
Part Number : HR-1234W , HR1234W , HR 1234W , ...
Features:
Measures:
Go: 150mm
High: 95mm
Widow: 65mm
Cells by Unit: 6
Unit voltage: of 12 V
Capacity: de 34W @ 15min-rate to 1.67V per cell @25 (77 )
Weight approx: 2.5 kg(5.51 lbs)
Maximum download current: 100/130A(5sec)
Approximately internal resistance:. Approx. 19mΩ
Download Temperature Range: -15oC 50oC ( 5oF 122oF )
Nominal operating temperature range: 25 ° C ± 3 ° C (77 ° F ± 5 ° F)
Voltage compensation charge: 13,5 to 13,8 VDC / average unit at 25 ° C (77 ° F)
Recommended maximum charge: 3.4 A limit current
Equalization and Cycle Service: 14,4 to 15,0 VCC / unit average to 25 ° C (77 ° F)
Autodownload: It should be more than 75% of the capacity before your storage after 6 months at room temperature. 25 °C
Terminal: F1/F2-Faston Tab187/250



Container of material: ABS (UL94-HB/FileE50263) * Inflammability resistance (UL94-V0/File E54297) may be available on request.
