Delock 63332 Audio Extractor HDMI 4K 60 Hz to HDMI with eARC

Delock 63332 Audio Extractor HDMI 4K 60 Hz to HDMI with eARC

Código PCXeon: 45029

Marca: Delock | Part Number: 63332

Estado: Nuevo | EAN: 4043619633326

Delock
On demand
€56.90
47,02 € without VAT
On demand
Producto Original

Description

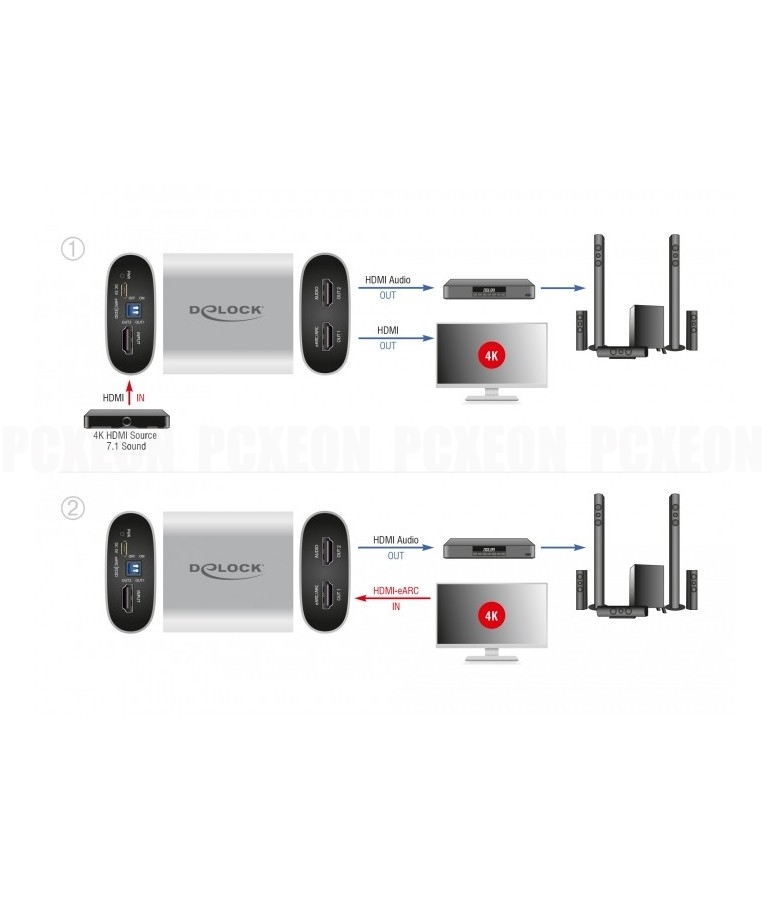

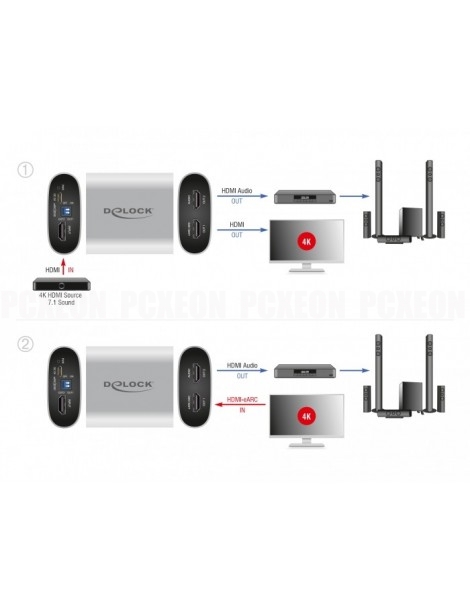

This adapter Delock can be used to extract the audio signal from a transmission HDMI. While the video signal is displayed on a television or monitor, the audio signal can be sent through the second HDMI port to a surround sound receiver. This allows an existing AV receiver or sound bar to be used, even if there is no proper Ultra-HD connection available.

HDMI audio output
Unlike conventional S/PDIF digital audio outputs, HDMI audio output can be used to transmit all modern surround sound formats to the receiver.

Audio Return Channel (ARC)
Alternatively, the eARC function can be activated in the extractor. Then, the audio signal of the connected TV device is broadcast in the HDMI audio port of the device.

Note

Operation on the HDMI ARC connector of a soundbar is not possible, the extractor requires a normal HDMI input.

Technical details

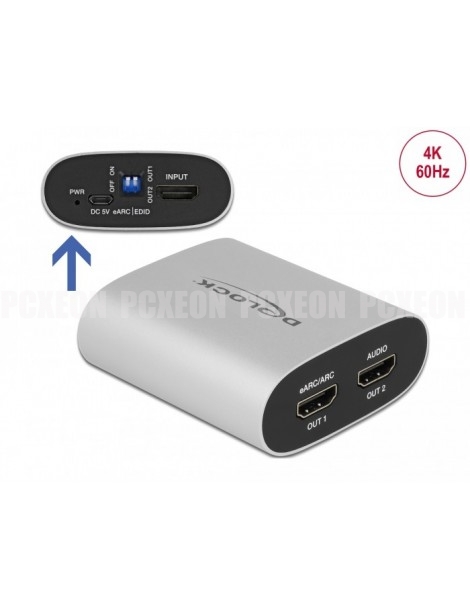

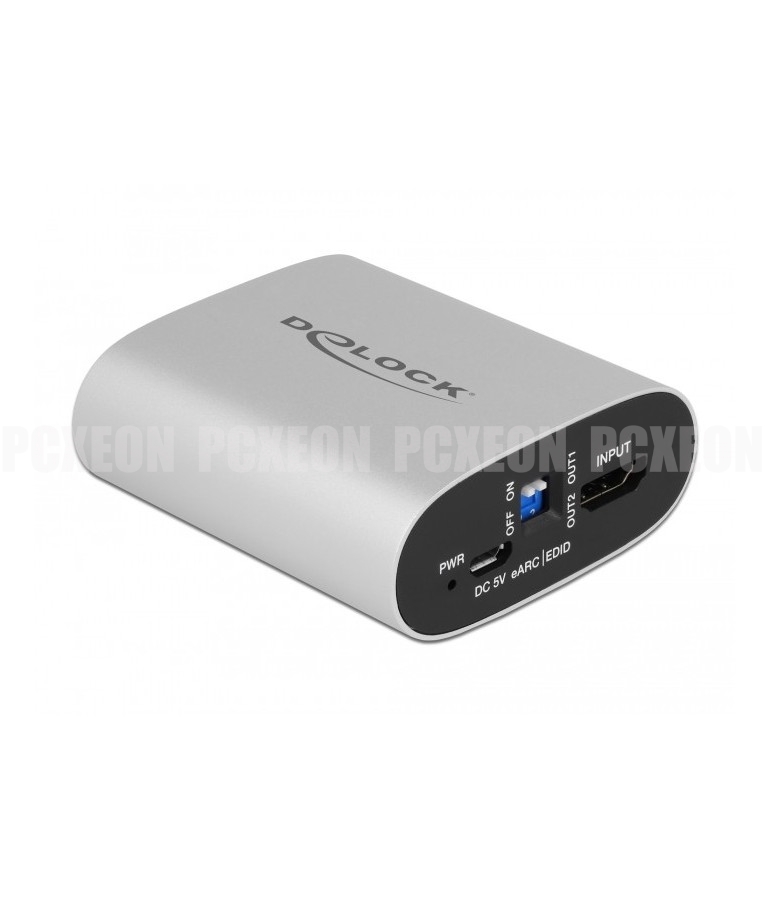

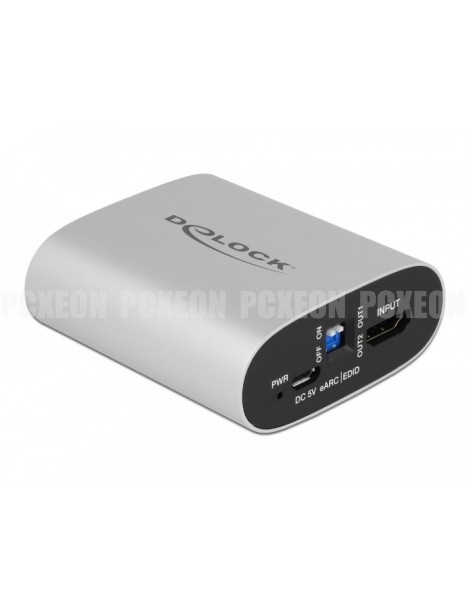

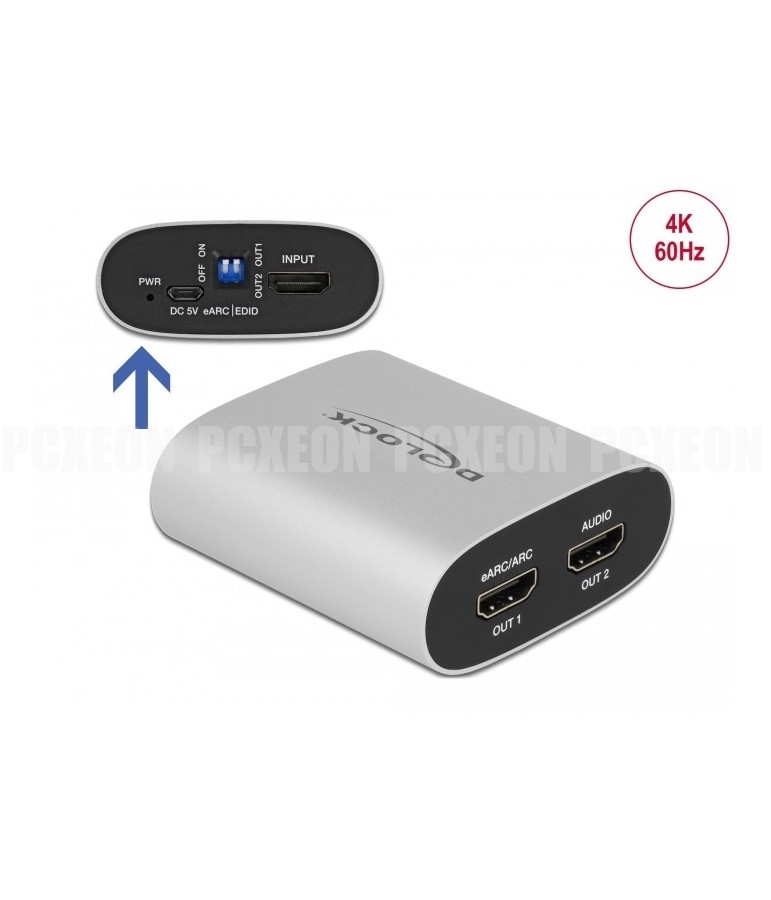

  • Connectors:
    Entry:
    1 x HDMI-A female
    1 x USB Type Micro-B female ( 5 V power supply)
    Departure:
    2 x HDMI-A female
  • High-speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
  • Support HDR (High Dynamic Range)
  • Maximum resolution 3840 x 2160 @ 60 Hz
  • Video band width up to 600 MHz / 6 Gbps, 18 Gbps max.
  • Dedicated HDMI output for audio only with 720p (black screen)
  • Supports all common 2.0, 5.1 and 7.1 audio formats:
    Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
    DTS-5.1, DTS-ES 6.1, DTS-HD HRA, DTS-HD Master Audio, DTS:X
  • Sampling rates admitted: 16 / 20 / 24 bits, 32 / 44,1 / 48 / 88,2 / 96 / 192 kHz
  • Supports eARC/ARC audio output to HDMI audio output
  • Admits CEC
  • Supports EDID management
  • Audio HDMI routed to output (pass through)
  • Power supply via USB (not included power supply)
  • Energy consumption: maximum 2 W
  • Metallic housing
  • Color: silver
  • Dimensions (LAxANxAL): approx. 70 x 65 x 27 mm

System requirements

  • A female port HDMI-A available
  • Power supply with USB port Type-A free USB

Package Content

  • HDMI audio extractor

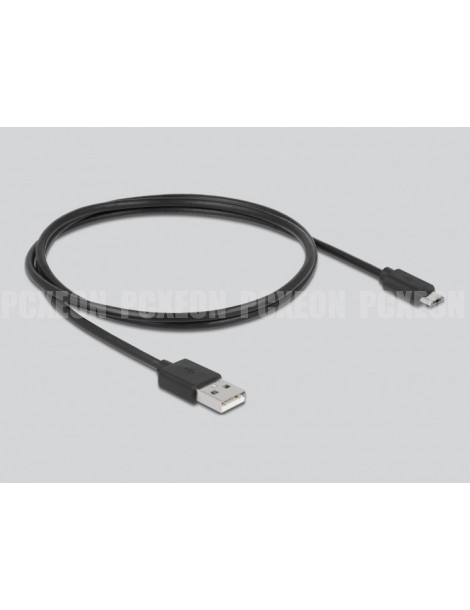

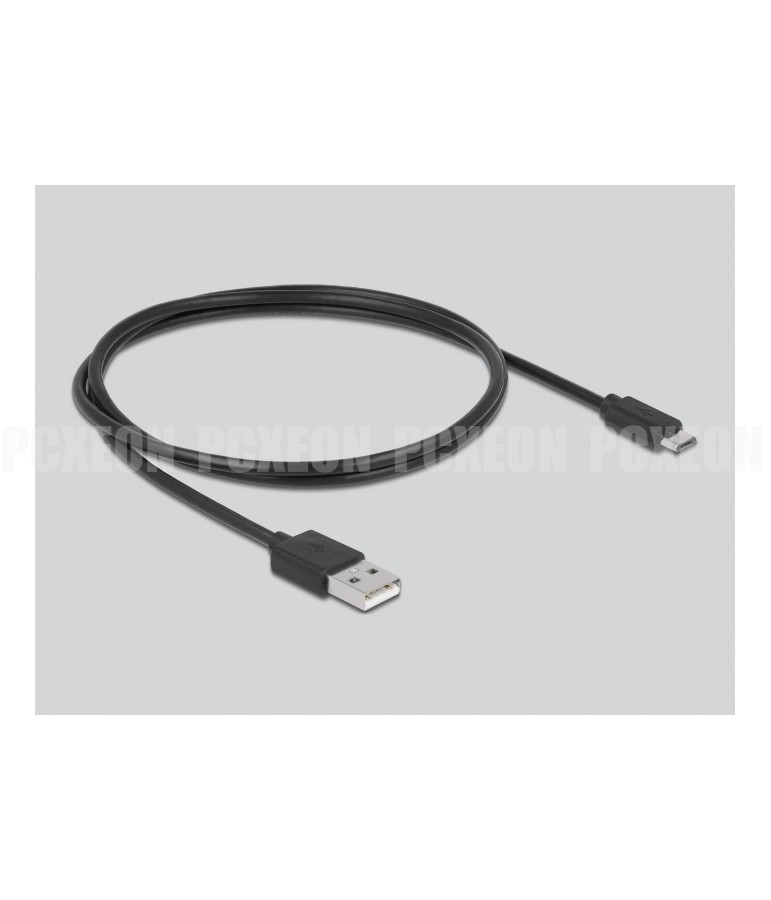

  • Type-A USB cable to Micro-B type, length approx. 100 cm
  • User manual

Package

  • Retail Box
