Technical specification
• U-blox chipset 6 GPS SuperSense®
• Frequency: L1, 1,575,42 MHz. Code C/A: 1,023 MHz
• Accept the signals of up to 50 satellites at the same time
• AGPS, WAAS, EGNOS and MSAS
• NMEA 0183 Protocols: GGA, GSA, GSV, RMC, VTG
• USB 2.0 specification
• Auto Baud Rate up to 115200
• Update rate: up to 5 Hz
• Maximum sensitivity. 162 dBm
• Protection class IPX6
• Magnatic, anti-slip in the background
• GPS LED-state-indicator
• Operating temperature: -20 °C to +60 °C
• Start in cold in about 25 seconds.
• Hot start in about 1 sec.
• Positioning Precision: CEP (Circular Probable Error, that is,
Circular error probability) 2.5 m and 2 m CEP with SBAS
• Dimensions (LAxANxAL): 65 mm x 45 mm x 22 mm

System requirements
• Windows 98SE/ME/2000/XP/Vista/7/8, Linux ex Kernel 2.6
• PC or laptop with available USB port

Package Content

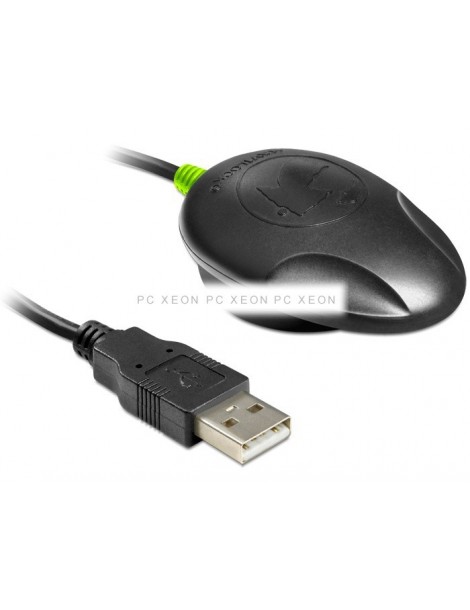

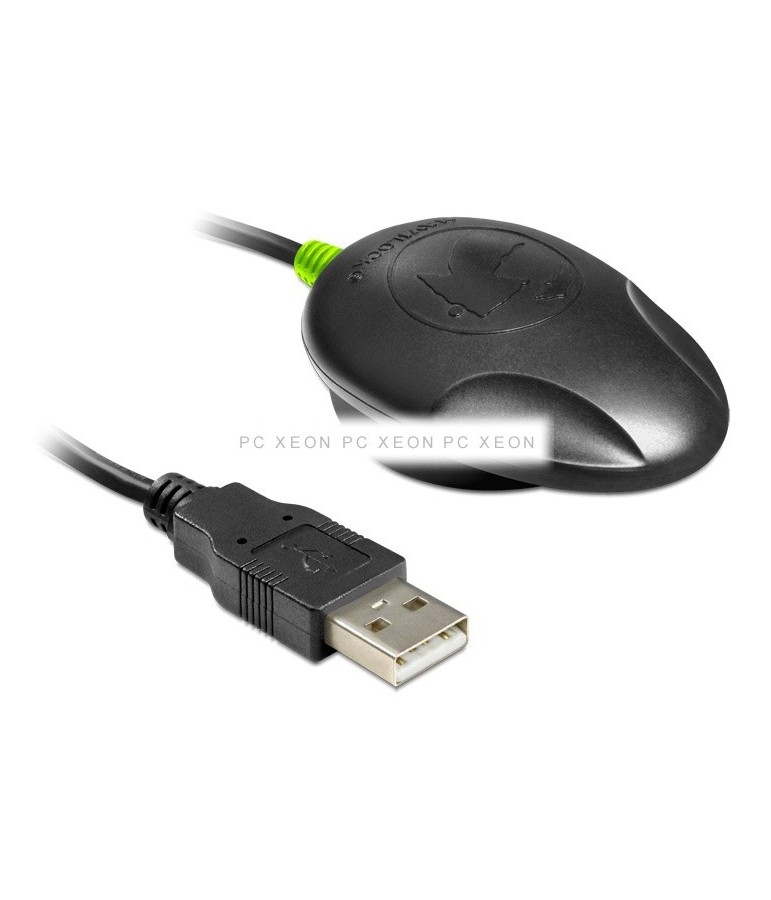

• USB 2.0 Receiver
• Driver on CD
• User manual on CD-ROM

Package

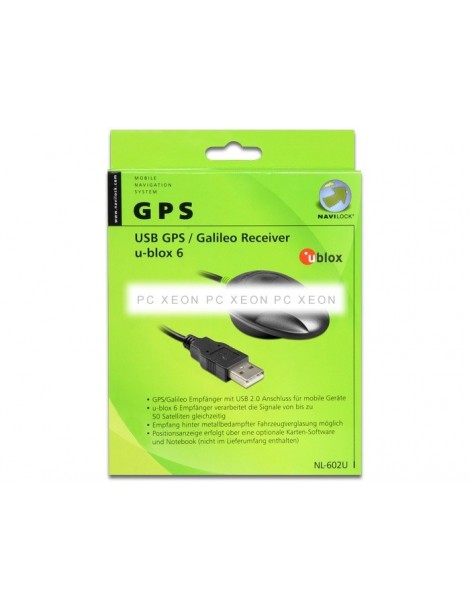

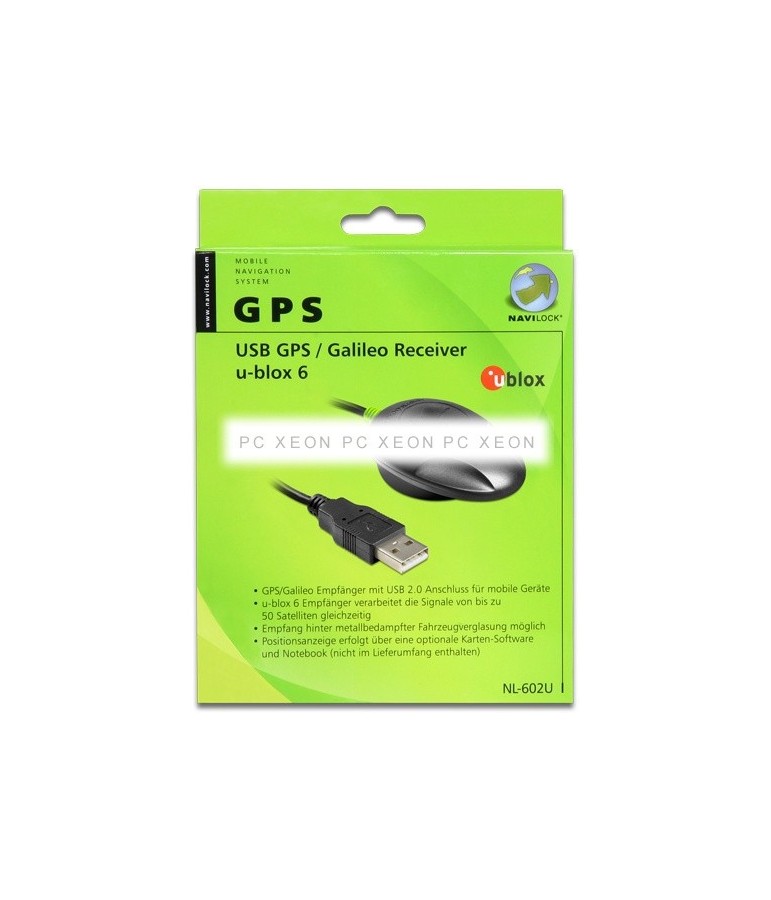

• Retail Box

** Programme Compatible LEFEBURE and CEREA.
