Features :

Operating system: LINUX

Video compression format: main profile H.264

Video input: 4 BNC channels

Video output : 1 BNC channel

Audio input: 4 RCA channels

Audio output: 1 channel RCA

Screen: channel 1/9

Multiple Operations : visualization, recording, transmission, recording, backup, surveillance through live mobile.

Screen resolution: PAL D1 (704 x 576), NTSC D1 (704 x 480)

Recording mode: timer / manual / motion detection / alarm

Recording frame speed: PAL 25 fps, NTSC 30 fps

Recording quality: high, normal, low

Recording Resolution: CIF / Half-D1 and D1

Reproduction recording: channel 4 playback simultaneously

Backup Recording: USB support disk backup, network backup, backup files, backup for time.. .

Recording display: AVI file format conversion

JPEG capture function: 3 M Pixels@10fps

Alarm e-mail: Send photos to the designated email

PTZ support

PTZ Protocol: PELCO-D, PELCO-P

HDD: Support 1 HDD SATA capacity up to 2 TB

Network and Protocol: 1 RJ-45 10 / 100 M via Ethernet, TCP/IP support, DHCP, UPNP DDNS, DNS, NTP etc.

IE Support Navigator

Customer Software Compatible

Dual stream

Supports multilanguage

Mobile surveillance: Windows support systems, Symbian, iPhone, Blackberry, Android

SDK package: available

Mouse interface: USB 2.0

Backup interface: USB 2.0

User Authority: distribution of user authority in varios levels

Time / Adjustable Format Date

Feeding : DC 12V / 3A

Temperature: -20 + 60 degrees Celsius

Humidity of work: 10% 90%

Recording frame speed: 25 fps/s

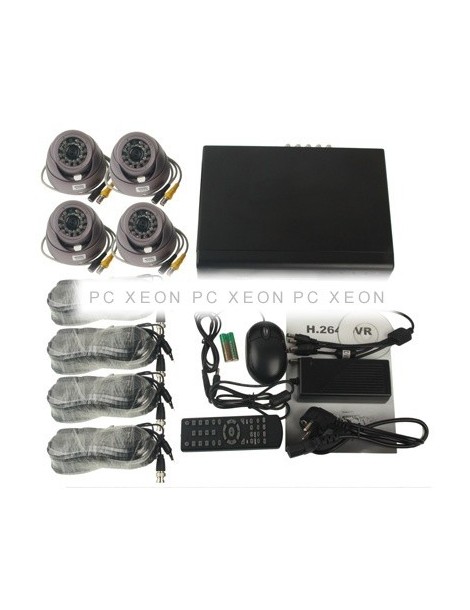

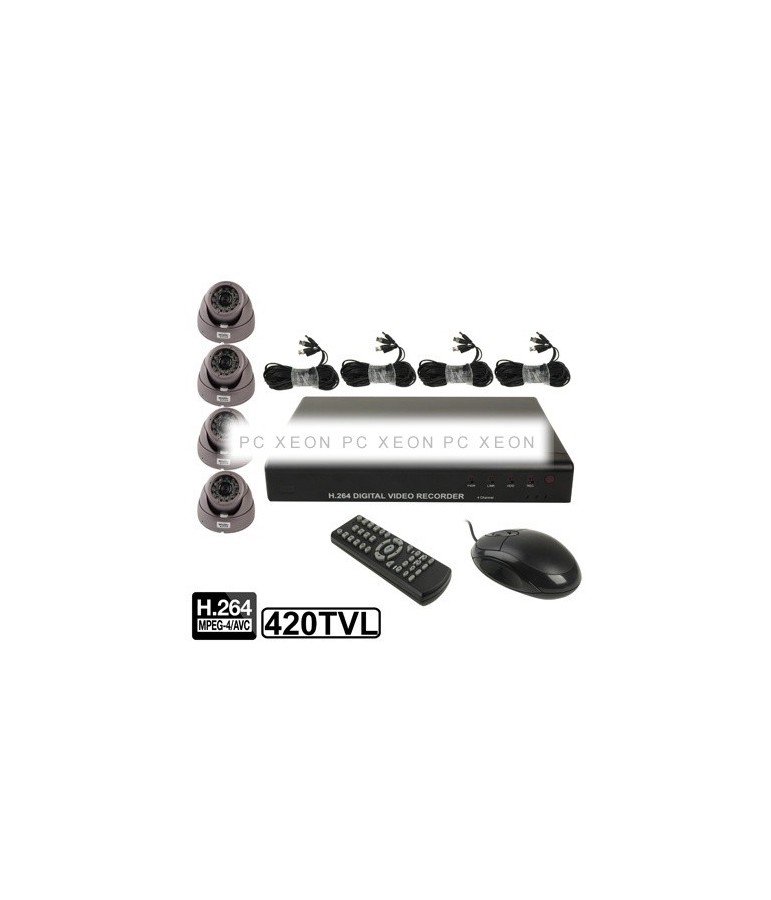

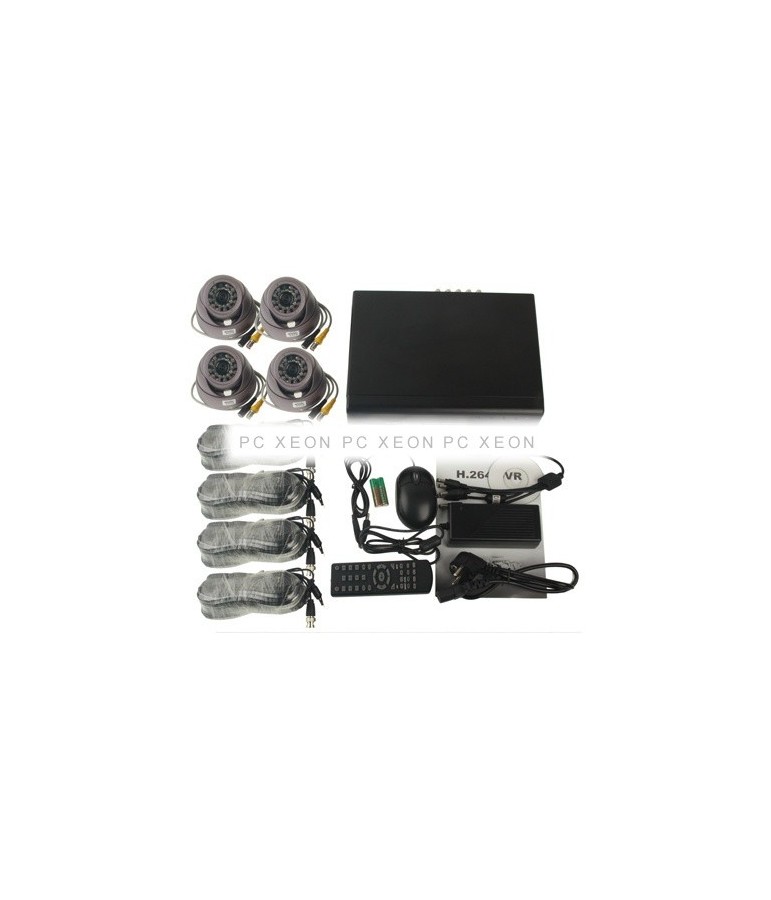

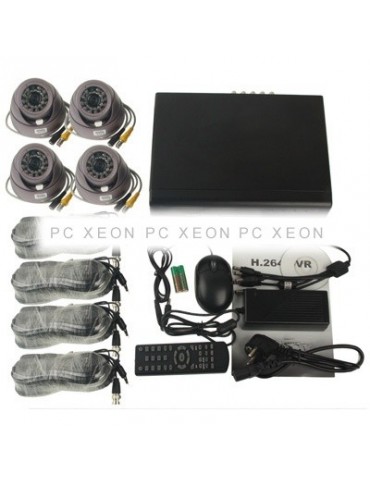

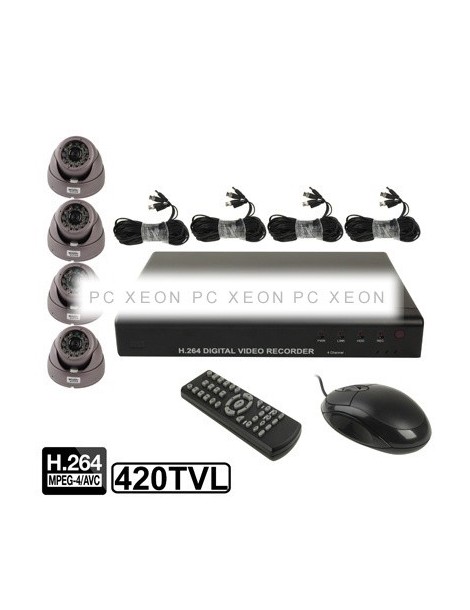

Package:

Infrared remote control (Included Pills)

DC 12V 3A power adapter

CD

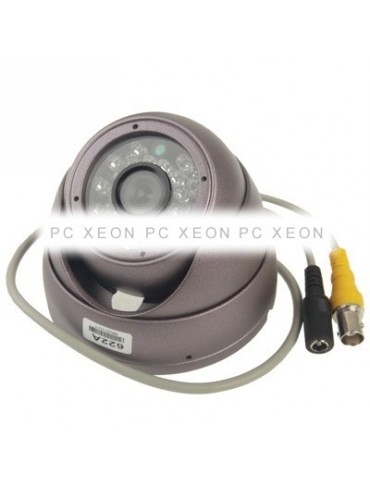

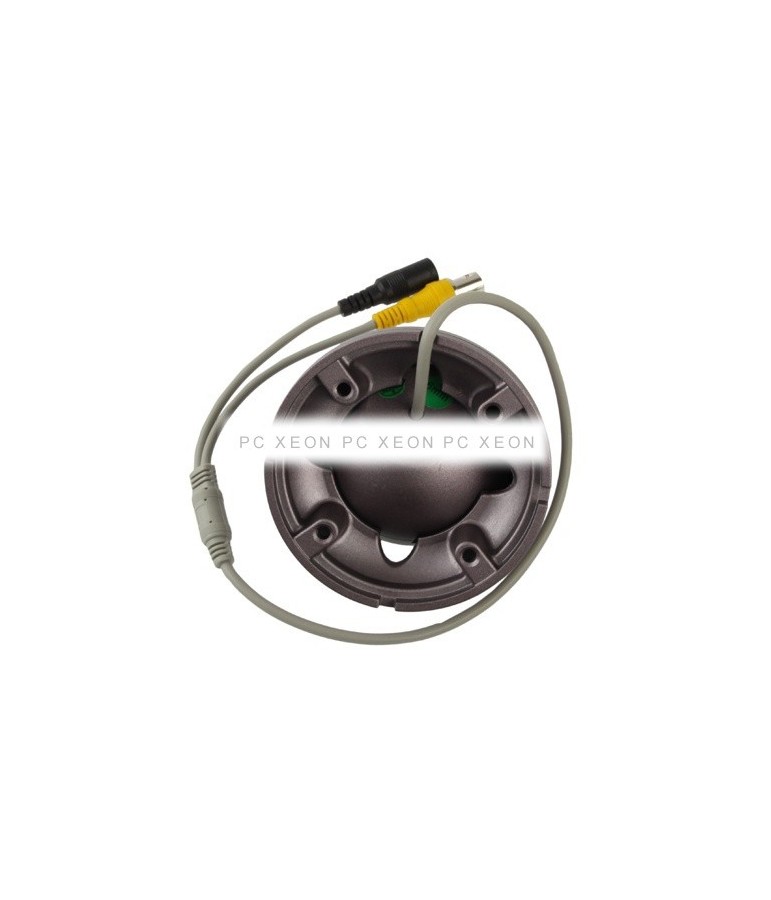

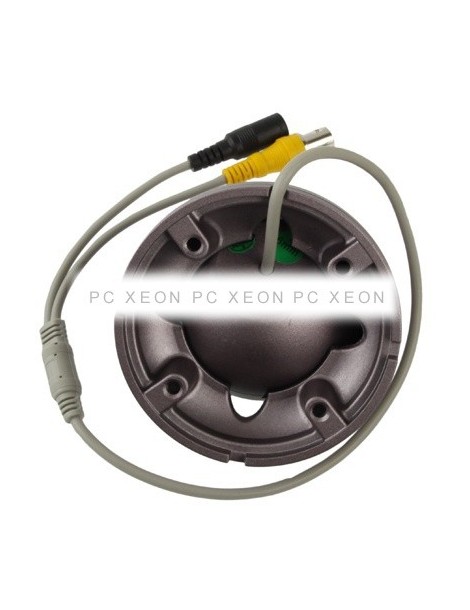

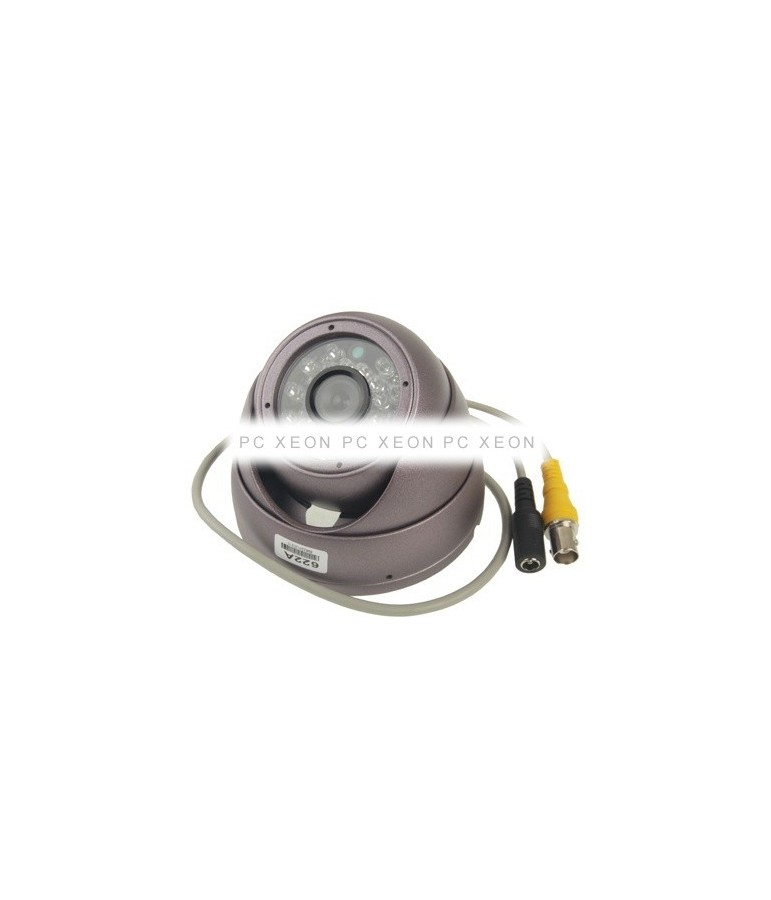

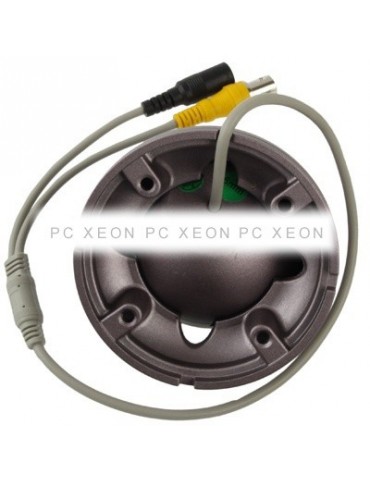

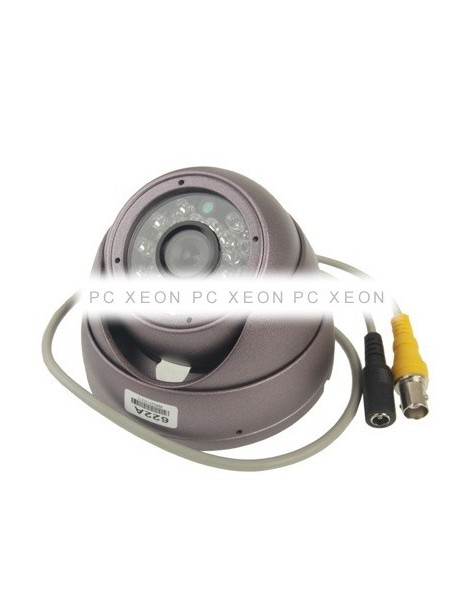

4x Camaras : 1 / 4 Sharp 420TVL CCD

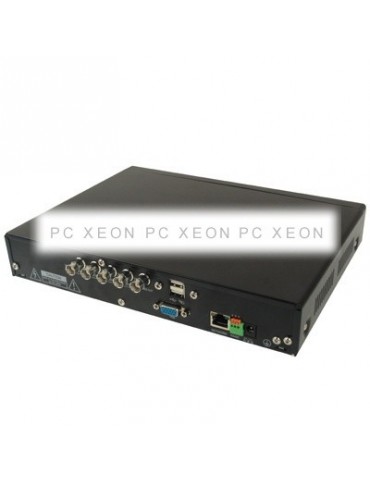

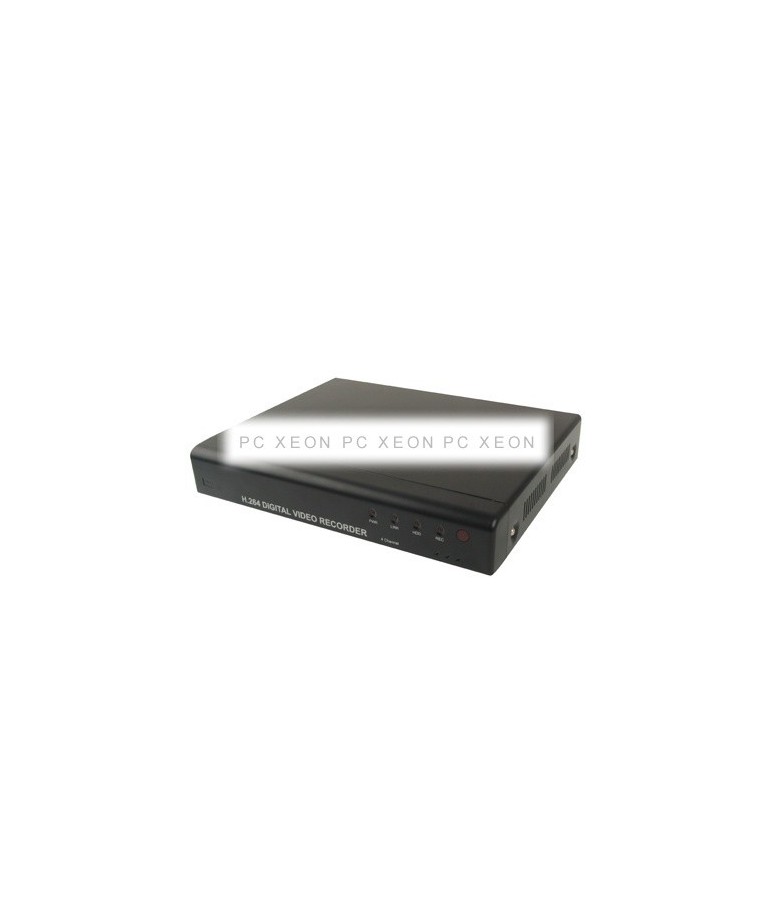

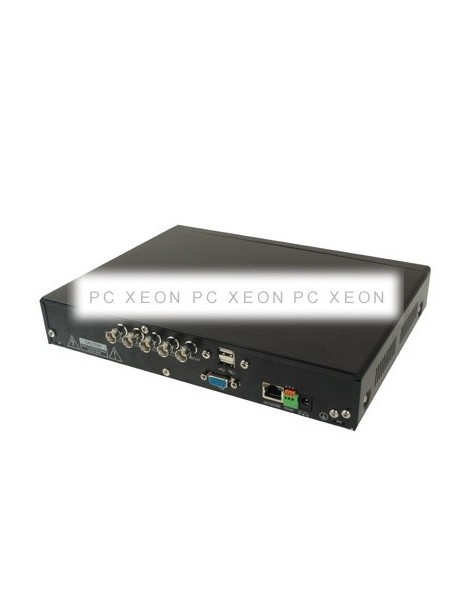

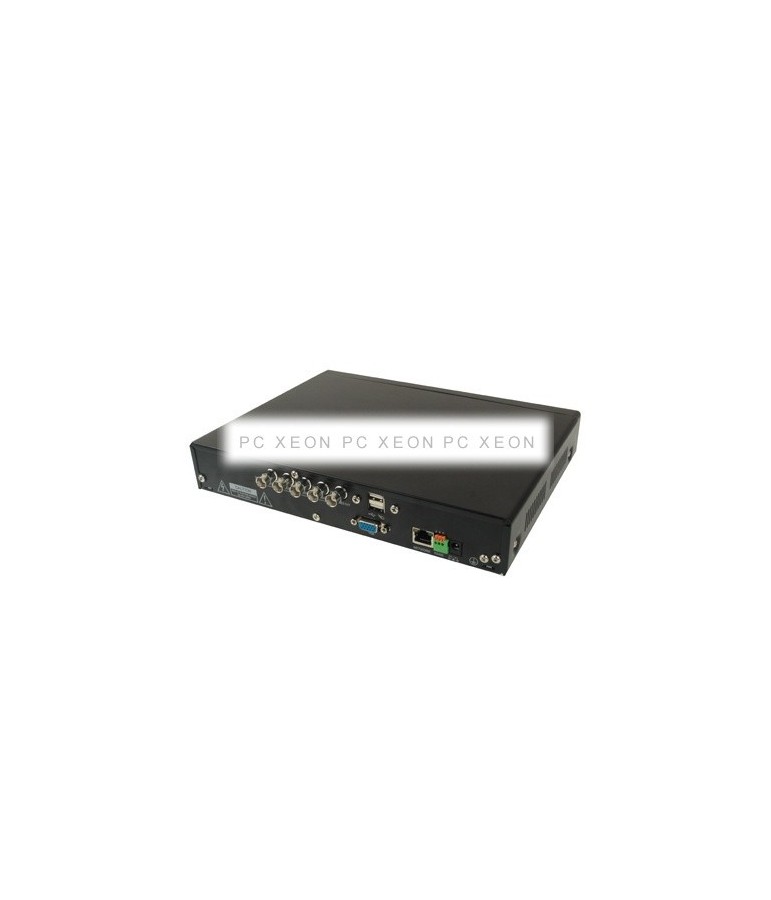

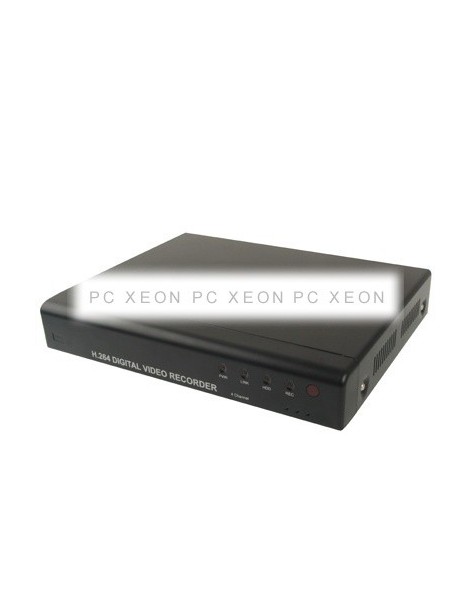

1x Video 4-channel Recorder
