Fuente FSP Group FSP350-60EVF 350W con envio a Mexico (Correos)

Código PCXeon: 47753

Marca: FSP Group | Part Number: FSP350-60EVF+ENV

Estado: Nuevo | EAN: No especificado

FSP Group
Portes gratis
Entrega en 3 semanas
Bajo pedido
145,00 €
145,00 € sin IVA
Bajo pedido
Producto Original

Esta Fuente de Alimentacion FLEX ATX de 350 vatios está diseñada y certificada para dar más de un 85% en la eficiencia operativa. Se adapta a la mayoría de las configuraciones ATX Flex . Todos los modelos FSP OEM están calificados para RoHS, sin plomo, productos ecológicos (G.P) estado global respetuoso con el medio ambiente.

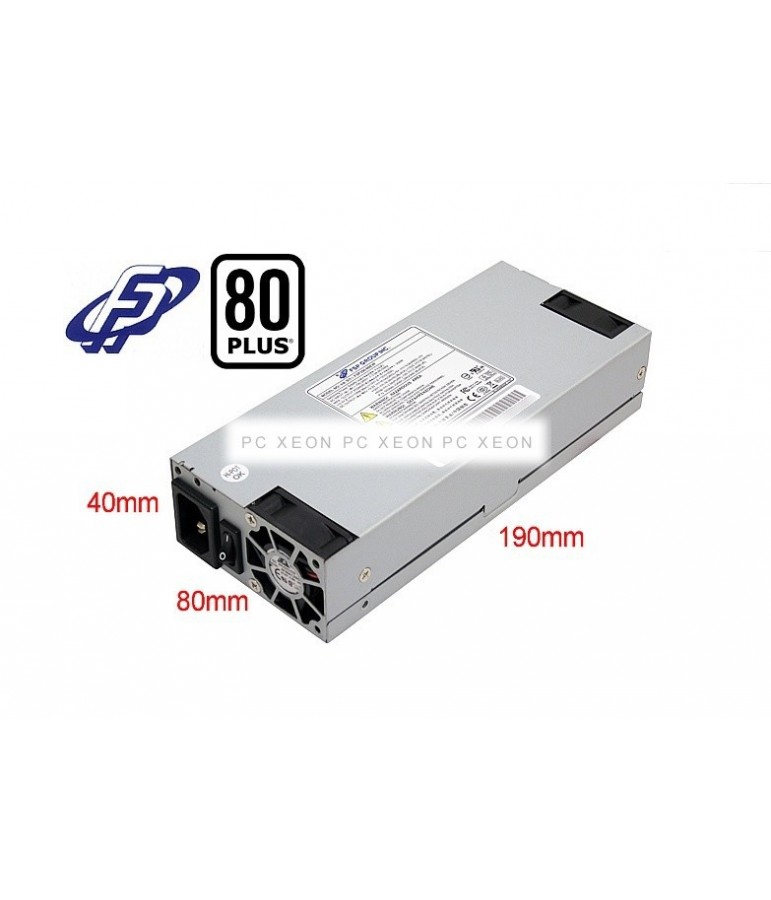

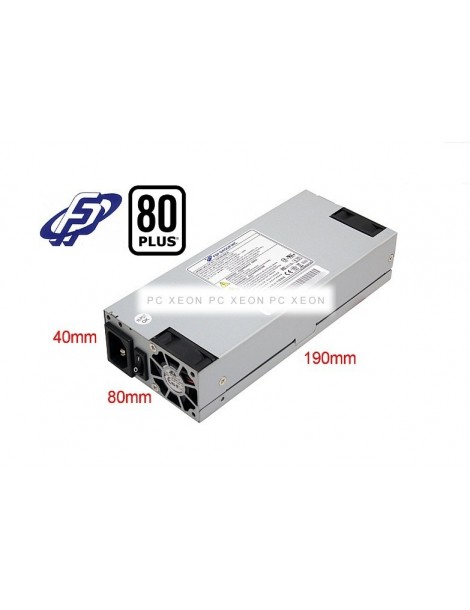

Medidas : 40 x 80 x 190 mm .

Part Numbers Compatibles : 9YA3500700 , 6LL0535805GP , FSP350-60EVF , 9YA3500703 , ...

Caracteristicas :

- 1U, Shuttle PSU
- Medidas : 40x80x190mm.
- Voltage: 110/230V (Full range).
- Certificados: All, 80+
- Connectores: 20+4pin, 2Molex, 2Floppy, P4.
- Peso: 1Kg.
- Incluye 1 Ventilador Interno de 4 cm

-Options: 24pin, SATA, 6pin adaptors.

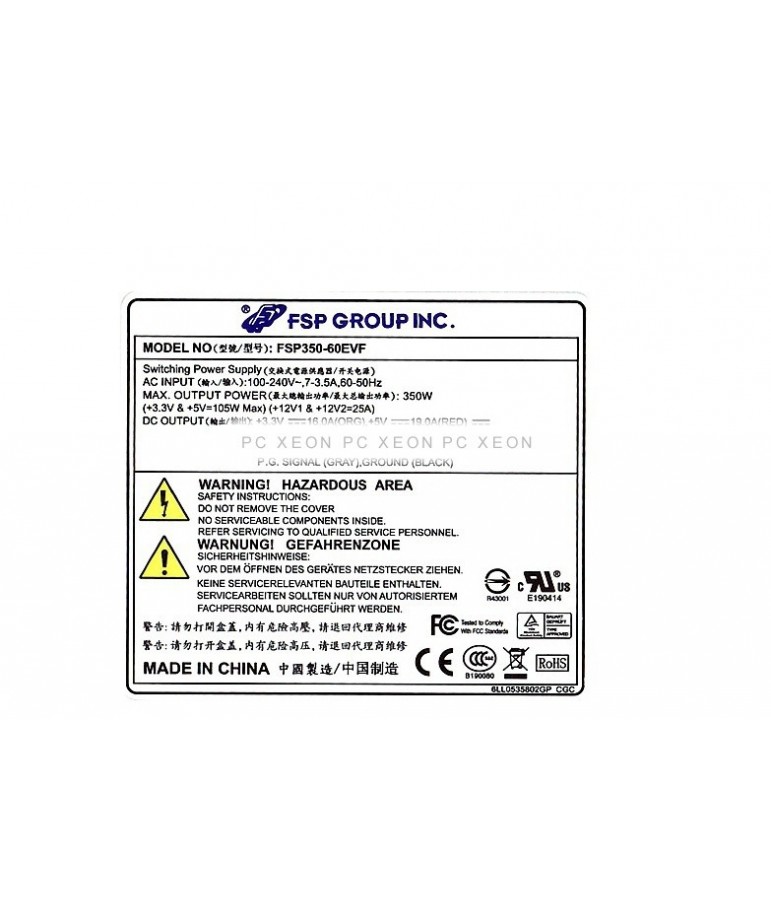

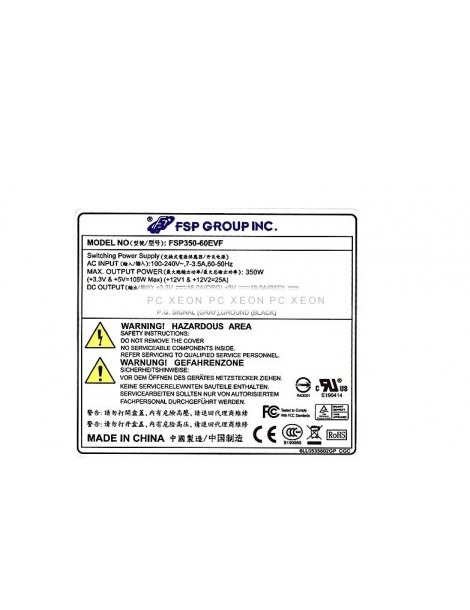

Model NameFSP350-60EVF
Wattage350W
Dimension190mm (L) × 81.5 mm (W) × 40.5mm (H)
Product HighlightEfficiency Level80 Plus
 Altitude2000M
 PMBusFor standard, advanced server, NAS and industrial power system.
General SpecificationEffciency80% 230VAC
 Voltage Regulation+3.3V, +12V, +5V, +5SB: ±5%
-12V: ±10%
Input Electrical SpecificationInput Frequency47 63 Hz
 Input Current115V@ 7.0 Amps-rms maximum
230V@ 3.5 Amps-rms maximum
Output SpecificationHold-up time115V/60Hz 17mSec. Minimum@100% Load,
230V/50Hz 17mSec. Minimum@100% Load
 Ouput Voltage Regulation+3.3Vdc output : +3.5 Vdc minimum, + 4.3Vdc maximum
+5Vdc output : +5.5 Vdc minimum, + 7Vdc maximum
+12Vdc output : +13.4 Vdc minimum, + 15.6Vdc maximum
 Ripple & Noise115V-rms/230V-rms 5V 20ms Maximum
115V-rms/230V-rms 12V 20ms Maximum
 Over current protection3.3V:50mV p-p
5V:50mV p-p
12V1:120mV p-p
12V2:120mV p-p
-12V:120mV p-p
5Vsb:50mV p-p
Environmental RequirementTemperature RangeOperating : 0 to +50℃
Storage :-20 to +80℃
 HumidityOperating : 5-85% to % RH, Non-condensing
Storage : 5-95% to % RH, Non-condensing
 MBTFThe power supply have a minimum predicted MTBF(MIL-HDBK-217) of 100,000 hours of continuous operation at 25℃, maximum-output load, and nominal AC inout voltage
SafetyCE,FCC,TUV,UL/cUL,CCC

Output Voltage and Current Rating

 +3.3V+5V+12V1+12V2-12V+5Vsb
Ripple-Noise(R-P) mV50mV50mV120mV120mV120mV50mV
Regulation Load %±5%±5%±5%±5%±10%±5%
Output Max.(A)16A19A16A16A0.3A2A
Output Min.(A)0.1A0.3A1A1A0A0A

Notes



  • 5V, 3.3V, 12V, -12V Will have the regulation to 10% when all load take off.
  • The +3.3V and +5V total output shall not exceed 105 watts.
  • The 12V1 and 12V2 combined current shall not exceed 25A.
  • The total output shall not exceed 350 watts
